Transform Function

The Transform function adds new calculated fields or modifies existing field values using expressions. It's essential for data manipulation, format conversion, and creating derived values.

How It Works

Transform processes each row and evaluates your expressions:

• New fields are added to the output schema
• Modified fields replace original values
• All other fields pass through unchanged

Each row is processed independently - expressions cannot reference other rows.

Adding a Transform

1. Drag Transform from the Functions section of the Element Panel
2. Or click on the canvas and select Transform from the quick menu
3. Connect it to your data source
4. Click the Transform node to configure expressions

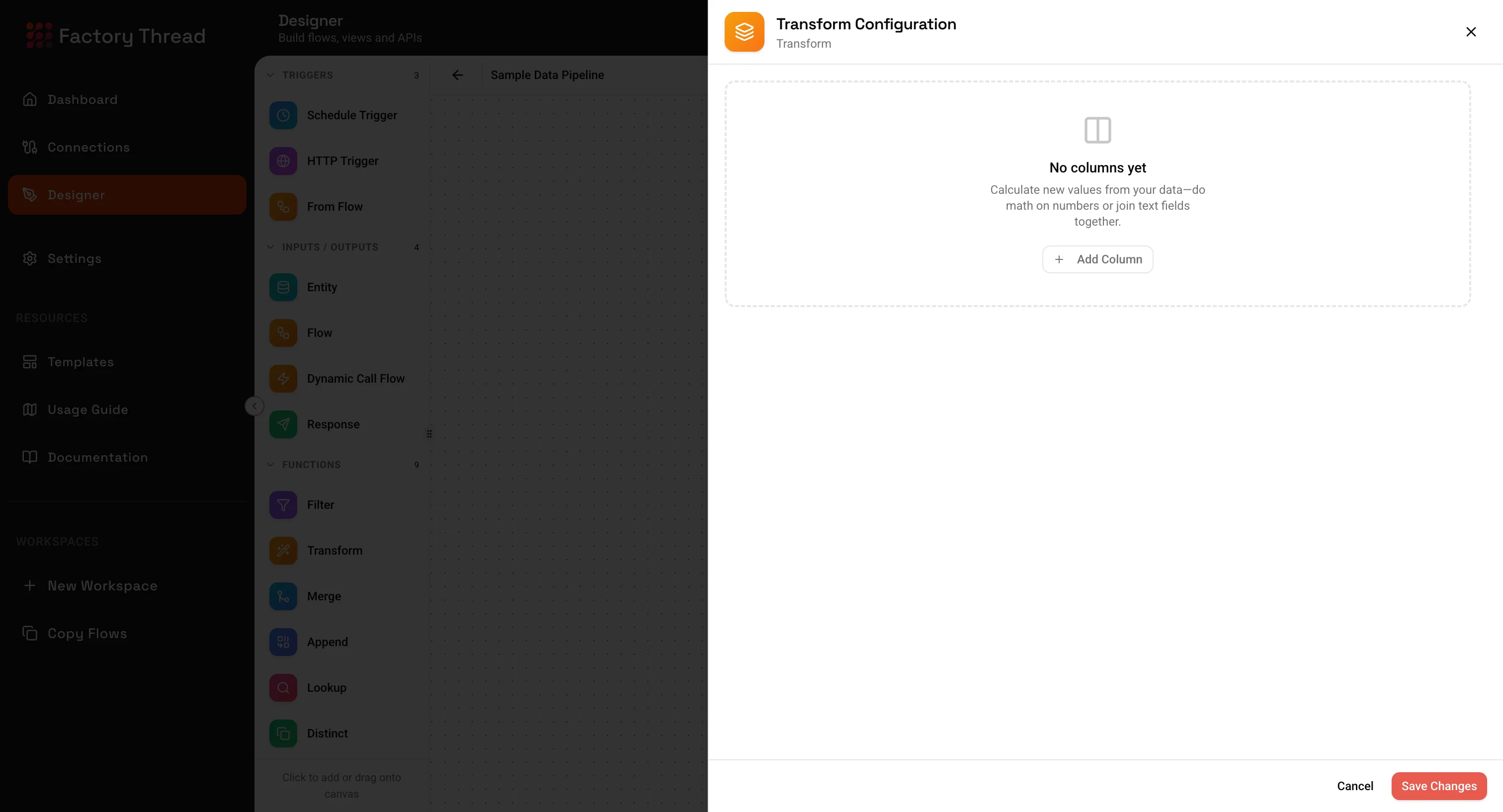

Configuration Panel

Field Definitions

The Transform panel shows a list of field definitions. Each definition specifies:

• The output field name
• The expression to calculate the value
• The output data type

Adding a Field

1. Click Add Field
2. Enter the Field Name (output column name)
3. Enter the Expression (the calculation)
4. Select the Data Type (output type)

Field Components

Field Name The name of the output column. Rules:

• Must be unique within the Transform
• Cannot match an existing field you're not overwriting
• Use descriptive names that indicate the content
• Avoid spaces and special characters (use underscores)

Expression The calculation to perform. Can include:

• Field references from upstream data
• Literal values (strings, numbers, dates)
• Functions (string, math, date, conditional)
• Parameters from triggers
• Combinations of the above

Data Type The expected output type:

• Text - String values
• Number - Numeric values (integers or decimals)
• Boolean - True/false values
• Date - Date/time values
• Object - Complex nested data

Expression Language

Field References

Reference upstream fields by name:

${fieldName}

Examples:

${FirstName}
${OrderTotal}
${CreatedDate}

For fields with spaces or special characters:

${["Field With Spaces"]}
${["Order#"]}

Literal Values

Strings - Wrap in quotes:

"Hello World"
'Single quotes work too'

Numbers - Use without quotes:

100
3.14159
-50

Booleans - Lowercase:

true
false

Dates - ISO format in quotes:

"2024-01-15"
"2024-01-15T09:30:00Z"

Operators

Arithmetic:

Operator	Description	Example
+	Addition	${Price} + ${Tax}
-	Subtraction	${Revenue} - ${Cost}
*	Multiplication	${Quantity} * ${UnitPrice}
/	Division	${Total} / ${Count}
%	Modulo	${Number} % 2

String Concatenation:

${FirstName} + " " + ${LastName}

Comparison:

Operator	Description	Example
==	Equals	${Status} == "Active"
!=	Not equals	${Type} != "Test"
>	Greater than	${Amount} > 100
>=	Greater or equal	${Score} >= 80
<	Less than	${Age} < 18
<=	Less or equal	${Count} <= 10

Logical:

Operator	Description	Example
&&	And	${Active} && ${Verified}
||	Or	${Admin} || ${Manager}
!	Not	!${Deleted}

String Functions

CONCAT

Combines multiple values into a single string.

Syntax: CONCAT(value1, value2, ...)

Examples:

CONCAT(${FirstName}, " ", ${LastName})
// "John" + " " + "Smith" → "John Smith"

CONCAT(${City}, ", ", ${State}, " ", ${ZipCode})
// "Seattle" + ", " + "WA" + " " + "98101" → "Seattle, WA 98101"

UPPER / LOWER

Converts text to uppercase or lowercase.

Syntax: UPPER(text) | LOWER(text)

Examples:

UPPER(${ProductCode})
// "abc-123" → "ABC-123"

LOWER(${Email})
// "John.Doe@Company.com" → "john.doe@company.com"

TRIM

Removes leading and trailing whitespace.

Syntax: TRIM(text)

Examples:

TRIM(${UserInput})
// "  hello world  " → "hello world"

TRIM(${Name})
// " John Smith " → "John Smith"

SUBSTRING

Extracts a portion of text.

Syntax: SUBSTRING(text, start, length)

• start - Starting position (0-based)
• length - Number of characters to extract

Examples:

SUBSTRING(${ProductCode}, 0, 3)
// "PRD-12345" → "PRD"

SUBSTRING(${Phone}, 0, 3)
// "206-555-1234" → "206"

SUBSTRING(${Date}, 0, 4)
// "2024-01-15" → "2024"

LEFT / RIGHT

Extracts characters from the start or end.

Syntax: LEFT(text, length) | RIGHT(text, length)

Examples:

LEFT(${OrderNumber}, 4)
// "ORD-12345" → "ORD-"

RIGHT(${SKU}, 4)
// "PROD-9876" → "9876"

REPLACE

Replaces occurrences of a substring.

Syntax: REPLACE(text, search, replacement)

Examples:

REPLACE(${Phone}, "-", "")
// "206-555-1234" → "2065551234"

REPLACE(${Status}, "In Progress", "WIP")
// "In Progress" → "WIP"

LENGTH

Returns the number of characters.

Syntax: LENGTH(text)

Examples:

LENGTH(${Name})
// "John Smith" → 10

LENGTH(${ProductCode})
// "PRD-12345" → 9

SPLIT

Splits text into an array.

Syntax: SPLIT(text, delimiter)

Examples:

SPLIT(${Tags}, ",")
// "red,green,blue" → ["red", "green", "blue"]

SPLIT(${FullName}, " ")
// "John Smith" → ["John", "Smith"]

INDEXOF

Finds the position of a substring.

Syntax: INDEXOF(text, search) Returns -1 if not found.

Examples:

INDEXOF(${Email}, "@")
// "john@company.com" → 4

INDEXOF(${Text}, "error")
// "No error found" → 3
// "All good" → -1

PAD

Pads text to a specified length.

Syntax: PADLEFT(text, length, char) | PADRIGHT(text, length, char)

Examples:

PADLEFT(${OrderNumber}, 10, "0")
// "123" → "0000000123"

PADRIGHT(${Name}, 20, " ")
// "John" → "John                "

Number Functions

ROUND / FLOOR / CEIL

Rounds numbers to specified precision.

Syntax:

• ROUND(number, decimals) - Round to nearest
• FLOOR(number) - Round down
• CEIL(number) - Round up

Examples:

ROUND(${Price}, 2)
// 99.956 → 99.96

FLOOR(${Quantity})
// 3.7 → 3

CEIL(${Score})
// 89.1 → 90

ABS

Returns the absolute value.

Syntax: ABS(number)

Examples:

ABS(${Balance})
// -150.50 → 150.50

ABS(${Difference})
// -25 → 25

MIN / MAX

Returns the minimum or maximum of values.

Syntax: MIN(value1, value2, ...) | MAX(value1, value2, ...)

Examples:

MIN(${Price}, ${CompetitorPrice})
// Returns the lower of two prices

MAX(${Score1}, ${Score2}, ${Score3})
// Returns the highest of three scores

MIN(${Quantity}, 100)
// Caps quantity at maximum 100

SUM / AVG

Aggregates values (useful with arrays).

Syntax: SUM(array) | AVG(array)

Examples:

SUM(${LineItems.Amount})
// Sum of all line item amounts

AVG(${Scores})
// Average of score array

MOD

Returns the remainder of division.

Syntax: MOD(number, divisor)

Examples:

MOD(${RowNumber}, 2)
// 0 if even, 1 if odd

MOD(${Sequence}, 10)
// Last digit of sequence number

POWER

Raises a number to a power.

Syntax: POWER(base, exponent)

Examples:

POWER(${Length}, 2)
// Square of length

POWER(${Growth}, ${Years})
// Compound calculation

Date Functions

NOW / TODAY

Returns current date/time or date.

Syntax: NOW() | TODAY()

Examples:

NOW()
// "2024-01-15T14:30:00Z"

TODAY()
// "2024-01-15"

DATEADD

Adds or subtracts from a date.

Syntax: DATEADD(date, amount, unit)

Units: "year", "month", "week", "day", "hour", "minute", "second"

Examples:

DATEADD(${OrderDate}, 30, "day")
// Add 30 days to order date

DATEADD(${StartDate}, -1, "week")
// Subtract 1 week from start date

DATEADD(NOW(), 1, "year")
// One year from now

DATEDIFF

Calculates the difference between dates.

Syntax: DATEDIFF(date1, date2, unit)

Examples:

DATEDIFF(${EndDate}, ${StartDate}, "day")
// Days between start and end

DATEDIFF(NOW(), ${CreatedDate}, "month")
// Months since creation

DATEDIFF(${DueDate}, TODAY(), "day")
// Days until due (negative if overdue)

DATEPART

Extracts a component from a date.

Syntax: DATEPART(date, part)

Parts: "year", "month", "day", "hour", "minute", "second", "dayofweek", "quarter"

Examples:

DATEPART(${OrderDate}, "year")
// 2024

DATEPART(${CreatedDate}, "month")
// 1 (January)

DATEPART(${Timestamp}, "hour")
// 14 (2 PM)

DATEPART(${Date}, "quarter")
// 1, 2, 3, or 4

FORMAT_DATE

Formats a date as text.

Syntax: FORMAT_DATE(date, format)

Format patterns:

• YYYY - 4-digit year
• MM - 2-digit month
• DD - 2-digit day
• HH - 2-digit hour (24h)
• mm - 2-digit minute
• ss - 2-digit second

Examples:

FORMAT_DATE(${OrderDate}, "MM/DD/YYYY")
// "01/15/2024"

FORMAT_DATE(${Timestamp}, "YYYY-MM-DD HH:mm")
// "2024-01-15 14:30"

FORMAT_DATE(${Date}, "MMMM D, YYYY")
// "January 15, 2024"

PARSE_DATE

Parses text into a date.

Syntax: PARSE_DATE(text, format)

Examples:

PARSE_DATE(${DateString}, "MM/DD/YYYY")
// "01/15/2024" → Date object

PARSE_DATE(${Timestamp}, "YYYY-MM-DD HH:mm:ss")
// "2024-01-15 14:30:00" → DateTime object

Conditional Functions

IF

Returns different values based on a condition.

Syntax: IF(condition, trueValue, falseValue)

Examples:

IF(${Amount} > 1000, "High", "Standard")
// Returns "High" if amount exceeds 1000

IF(${Status} == "Active", 1, 0)
// Converts status to numeric flag

IF(${Score} >= 80, "Pass", "Fail")
// Grade assignment

Nested IF

Chain conditions for multiple outcomes.

Examples:

IF(${Score} >= 90, "A",
  IF(${Score} >= 80, "B",
    IF(${Score} >= 70, "C",
      IF(${Score} >= 60, "D", "F"))))
// Grade calculation

IF(${Amount} >= 10000, "Enterprise",
  IF(${Amount} >= 1000, "Business", "Starter"))
// Tier assignment

CASE

Multiple condition evaluation (cleaner than nested IF).

Syntax:

CASE(
  condition1, result1,
  condition2, result2,
  ...,
  defaultResult
)

Examples:

CASE(
  ${Region} == "US", "United States",
  ${Region} == "UK", "United Kingdom",
  ${Region} == "CA", "Canada",
  "Other"
)

CASE(
  ${Priority} == 1, "Critical",
  ${Priority} == 2, "High",
  ${Priority} == 3, "Medium",
  "Low"
)

COALESCE

Returns the first non-null value.

Syntax: COALESCE(value1, value2, ...)

Examples:

COALESCE(${PreferredName}, ${FirstName}, "Unknown")
// Returns preferred name, or first name, or "Unknown"

COALESCE(${MobilePhone}, ${WorkPhone}, ${HomePhone})
// Returns first available phone number

COALESCE(${OverridePrice}, ${BasePrice})
// Use override if set, otherwise base price

ISNULL / ISNOTNULL

Checks for null values.

Syntax: ISNULL(value) | ISNOTNULL(value)

Examples:

IF(ISNULL(${MiddleName}), ${FirstName} + " " + ${LastName},
   ${FirstName} + " " + ${MiddleName} + " " + ${LastName})

IF(ISNOTNULL(${CompletedDate}), "Completed", "In Progress")

NULLIF

Returns null if values are equal.

Syntax: NULLIF(value1, value2)

Examples:

NULLIF(${Amount}, 0)
// Returns null if amount is 0 (useful for division)

NULLIF(${Status}, "N/A")
// Returns null if status is "N/A"

Type Conversion Functions

TOSTRING

Converts any value to text. For objects and arrays, converts to JSON string format.

Syntax: TOSTRING(value)

Examples:

TOSTRING(${OrderNumber})
// 12345 → "12345"

TOSTRING(${Price})
// 99.95 → "99.95"

TOSTRING(${IsActive})
// true → "true"

TOSTRING(${CustomerData})
// {name: "John", age: 30} → '{"name":"John","age":30}'

TOSTRING(${Tags})
// ["red", "blue"] → '["red","blue"]'

Note: For object and array fields, only "To String" and conditional (IF/THEN) operations are available in the Transform panel.

TONUMBER

Converts text to a number.

Syntax: TONUMBER(text)

Examples:

TONUMBER(${QuantityString})
// "100" → 100

TONUMBER(${PriceText})
// "99.95" → 99.95

TOBOOLEAN

Converts to a boolean.

Syntax: TOBOOLEAN(value)

Examples:

TOBOOLEAN(${ActiveFlag})
// "true" → true
// 1 → true
// "Y" → true

TOBOOLEAN(${IsEnabled})
// "false" → false
// 0 → false
// "N" → false

TODATE

Converts text to a date.

Syntax: TODATE(text)

Examples:

TODATE(${DateString})
// "2024-01-15" → Date object

TODATE(${Timestamp})
// "2024-01-15T14:30:00Z" → DateTime object

JSON Functions

JSON_EXTRACT

Extracts a value from JSON using a path.

Syntax: JSON_EXTRACT(json, path)

Examples:

JSON_EXTRACT(${Metadata}, "$.customer.name")
// {"customer": {"name": "John"}} → "John"

JSON_EXTRACT(${Response}, "$.data.items[0].id")
// {"data": {"items": [{"id": 123}]}} → 123

JSON_ARRAY_LENGTH

Returns the length of a JSON array.

Syntax: JSON_ARRAY_LENGTH(json, path)

Examples:

JSON_ARRAY_LENGTH(${Order}, "$.lineItems")
// Number of line items in order

JSON_ARRAY_LENGTH(${Response}, "$.results")
// Number of results returned

Common Transform Patterns

Creating Full Names

Simple concatenation:

Field: FullName
Expression: CONCAT(${FirstName}, " ", ${LastName})
Type: Text

With middle name handling:

Field: FullName
Expression: IF(ISNOTNULL(${MiddleName}),
  CONCAT(${FirstName}, " ", ${MiddleName}, " ", ${LastName}),
  CONCAT(${FirstName}, " ", ${LastName}))
Type: Text

Calculating Totals

Line item total:

Field: LineTotal
Expression: ${Quantity} * ${UnitPrice}
Type: Number

With discount:

Field: DiscountedTotal
Expression: ${Quantity} * ${UnitPrice} * (1 - ${DiscountPercent} / 100)
Type: Number

With tax:

Field: GrandTotal
Expression: ${Subtotal} * (1 + ${TaxRate} / 100)
Type: Number

Standardizing Formats

Phone numbers:

Field: FormattedPhone
Expression: CONCAT("(", SUBSTRING(${Phone}, 0, 3), ") ",
  SUBSTRING(${Phone}, 3, 3), "-", SUBSTRING(${Phone}, 6, 4))
Type: Text
// "2065551234" → "(206) 555-1234"

Currency:

Field: FormattedPrice
Expression: CONCAT("$", TOSTRING(ROUND(${Price}, 2)))
Type: Text
// 99.5 → "$99.50"

Dates:

Field: DisplayDate
Expression: FORMAT_DATE(${OrderDate}, "MMM D, YYYY")
Type: Text
// 2024-01-15 → "Jan 15, 2024"

Status Mappings

Code to description:

Field: StatusDescription
Expression: CASE(
  ${StatusCode} == "A", "Active",
  ${StatusCode} == "P", "Pending",
  ${StatusCode} == "C", "Completed",
  ${StatusCode} == "X", "Cancelled",
  "Unknown")
Type: Text

Boolean to text:

Field: ActiveStatus
Expression: IF(${IsActive}, "Yes", "No")
Type: Text

Age Calculations

Age from birthdate:

Field: Age
Expression: DATEDIFF(TODAY(), ${BirthDate}, "year")
Type: Number

Days until due:

Field: DaysRemaining
Expression: DATEDIFF(${DueDate}, TODAY(), "day")
Type: Number

Is overdue flag:

Field: IsOverdue
Expression: ${DueDate} < TODAY() && ISNULL(${CompletedDate})
Type: Boolean

Data Classification

Value tiers:

Field: CustomerTier
Expression: CASE(
  ${TotalPurchases} >= 100000, "Platinum",
  ${TotalPurchases} >= 50000, "Gold",
  ${TotalPurchases} >= 10000, "Silver",
  "Bronze")
Type: Text

Priority scoring:

Field: PriorityScore
Expression: (${Value} * 0.4) + (${Urgency} * 0.3) + (${Impact} * 0.3)
Type: Number

Extracting Parts

Domain from email:

Field: EmailDomain
Expression: SUBSTRING(${Email}, INDEXOF(${Email}, "@") + 1, 100)
Type: Text
// "john@company.com" → "company.com"

Year from date:

Field: OrderYear
Expression: DATEPART(${OrderDate}, "year")
Type: Number

First word:

Field: FirstWord
Expression: SUBSTRING(${Text}, 0, INDEXOF(${Text}, " "))
Type: Text

Null Handling

Default values:

Field: DisplayName
Expression: COALESCE(${Nickname}, ${FirstName}, "Guest")
Type: Text

Null-safe calculations:

Field: SafeTotal
Expression: COALESCE(${Quantity}, 0) * COALESCE(${Price}, 0)
Type: Number

Null replacement:

Field: CleanedNotes
Expression: COALESCE(${Notes}, "")
Type: Text

Using Parameters

Reference trigger parameters in expressions:

From HTTP trigger:

Field: AppliedDiscount
Expression: ${Price} * (1 - ${discountPercent} / 100)

From schedule trigger:

Field: IsAfterCutoff
Expression: ${OrderDate} >= ${reportStartDate}

Dynamic thresholds:

Field: PriorityFlag
Expression: IF(${Amount} >= ${minAmount}, "Priority", "Standard")

Multiple Transforms

You can add multiple field definitions in a single Transform node:

Field 1: FullName = CONCAT(${FirstName}, " ", ${LastName})
Field 2: TotalPrice = ${Quantity} * ${UnitPrice}
Field 3: OrderYear = DATEPART(${OrderDate}, "year")
Field 4: IsHighValue = ${TotalPrice} > 1000
Field 5: Status = IF(${Active}, "Active", "Inactive")

All fields are calculated and added to the output.

Overwriting Fields

To modify an existing field, use the same field name:

Trim whitespace:

Field: CustomerName (existing field)
Expression: TRIM(${CustomerName})

Convert case:

Field: Email (existing field)
Expression: LOWER(${Email})

Rounding:

Field: Price (existing field)
Expression: ROUND(${Price}, 2)

Best Practices

Name Fields Clearly

// Good - descriptive names
FullName, TotalWithTax, DaysUntilDue, IsHighPriority

// Avoid - unclear names
Field1, Calc, Temp, X

Keep Expressions Readable

Complex expression - hard to read:

IF(${A}>100,IF(${B}=="X",${C}*1.1,${C}*0.9),${C})

Better - use CASE or multiple transforms:

CASE(
  ${Amount} > 100 && ${Type} == "Premium", ${BasePrice} * 1.1,
  ${Amount} > 100, ${BasePrice} * 0.9,
  ${BasePrice}
)

Handle Nulls Explicitly

Null values can cause unexpected results:

// Risky - null propagates
${Price} * ${Quantity}

// Safe - handle nulls
COALESCE(${Price}, 0) * COALESCE(${Quantity}, 0)

Validate Types

Ensure expression output matches the specified type:

// Expression returns number, type should be Number
${Quantity} * ${Price}

// Expression returns text, type should be Text
CONCAT(${First}, " ", ${Last})

// Expression returns boolean, type should be Boolean
${Amount} > 1000

Test Edge Cases

Preview with data that includes:

• Null values
• Empty strings
• Negative numbers
• Very long text
• Special characters
• Boundary values

Troubleshooting

Expression Errors

"Field not found":

• Check field name spelling
• Verify field exists in upstream data
• Use the field selector dropdown

"Type mismatch":

• Ensure operations match types
• Use conversion functions when needed
• Numbers and strings don't mix with +

"Syntax error":

• Check parentheses matching
• Verify function names and arguments
• Look for missing quotes around strings

Unexpected Results

Null output:

• One operand might be null
• Use COALESCE or null checks

Wrong data type:

• Verify the type selector matches your expression
• Use explicit conversion functions

Incorrect calculations:

• Check operator precedence
• Use parentheses to clarify order

Performance Issues

Slow transforms:

• Complex nested IFs are expensive
• JSON parsing on large objects takes time
• Consider filtering first to reduce row count

Memory issues:

• Avoid creating very long strings
• Don't expand arrays unnecessarily

Examples

E-commerce Order Processing

Transform: Order Calculations

Field 1: LineTotal
Expression: ${Quantity} * ${UnitPrice}
Type: Number

Field 2: DiscountAmount
Expression: ${LineTotal} * ${DiscountPercent} / 100
Type: Number

Field 3: TaxableAmount
Expression: ${LineTotal} - ${DiscountAmount}
Type: Number

Field 4: TaxAmount
Expression: ${TaxableAmount} * ${TaxRate} / 100
Type: Number

Field 5: OrderTotal
Expression: ${TaxableAmount} + ${TaxAmount}
Type: Number

Field 6: OrderDate
Expression: FORMAT_DATE(${CreatedAt}, "MMMM D, YYYY")
Type: Text

Customer Data Standardization

Transform: Standardize Customer Data

Field 1: FullName
Expression: CONCAT(TRIM(${FirstName}), " ", TRIM(${LastName}))
Type: Text

Field 2: Email
Expression: LOWER(TRIM(${Email}))
Type: Text

Field 3: Phone
Expression: REPLACE(REPLACE(REPLACE(${Phone}, "-", ""), "(", ""), ")", "")
Type: Text

Field 4: CustomerSince
Expression: DATEPART(${CreatedDate}, "year")
Type: Number

Field 5: IsLongTermCustomer
Expression: DATEDIFF(TODAY(), ${CreatedDate}, "year") >= 5
Type: Boolean

Sales Performance Metrics

Transform: Calculate Sales Metrics

Field 1: Revenue
Expression: ${Quantity} * ${SalePrice}
Type: Number

Field 2: Cost
Expression: ${Quantity} * ${CostPrice}
Type: Number

Field 3: Profit
Expression: ${Revenue} - ${Cost}
Type: Number

Field 4: ProfitMargin
Expression: ROUND((${Profit} / ${Revenue}) * 100, 2)
Type: Number

Field 5: PerformanceRating
Expression: CASE(
  ${ProfitMargin} >= 30, "Excellent",
  ${ProfitMargin} >= 20, "Good",
  ${ProfitMargin} >= 10, "Average",
  "Below Target")
Type: Text

Next Steps

• Filter Function - Filter rows based on conditions
• Map Function - Select and rename fields
• Merge Function - Combine data from multiple sources
• Building Flows - Complete workflow guide
