Filter Function

The Filter function includes or excludes rows from your data based on conditions you define. It's one of the most commonly used functions for narrowing down data to exactly what you need.

How It Works

The Filter evaluates each row against your conditions:

• Matching rows pass through to the next node
• Non-matching rows are discarded

Data flows through unchanged - no columns are added, removed, or modified. Only the number of rows changes.

Adding a Filter

1. Drag Filter from the Functions section of the Element Panel
2. Or click on the canvas and select Filter from the quick menu
3. Connect it to your data source
4. Click the Filter node to configure conditions

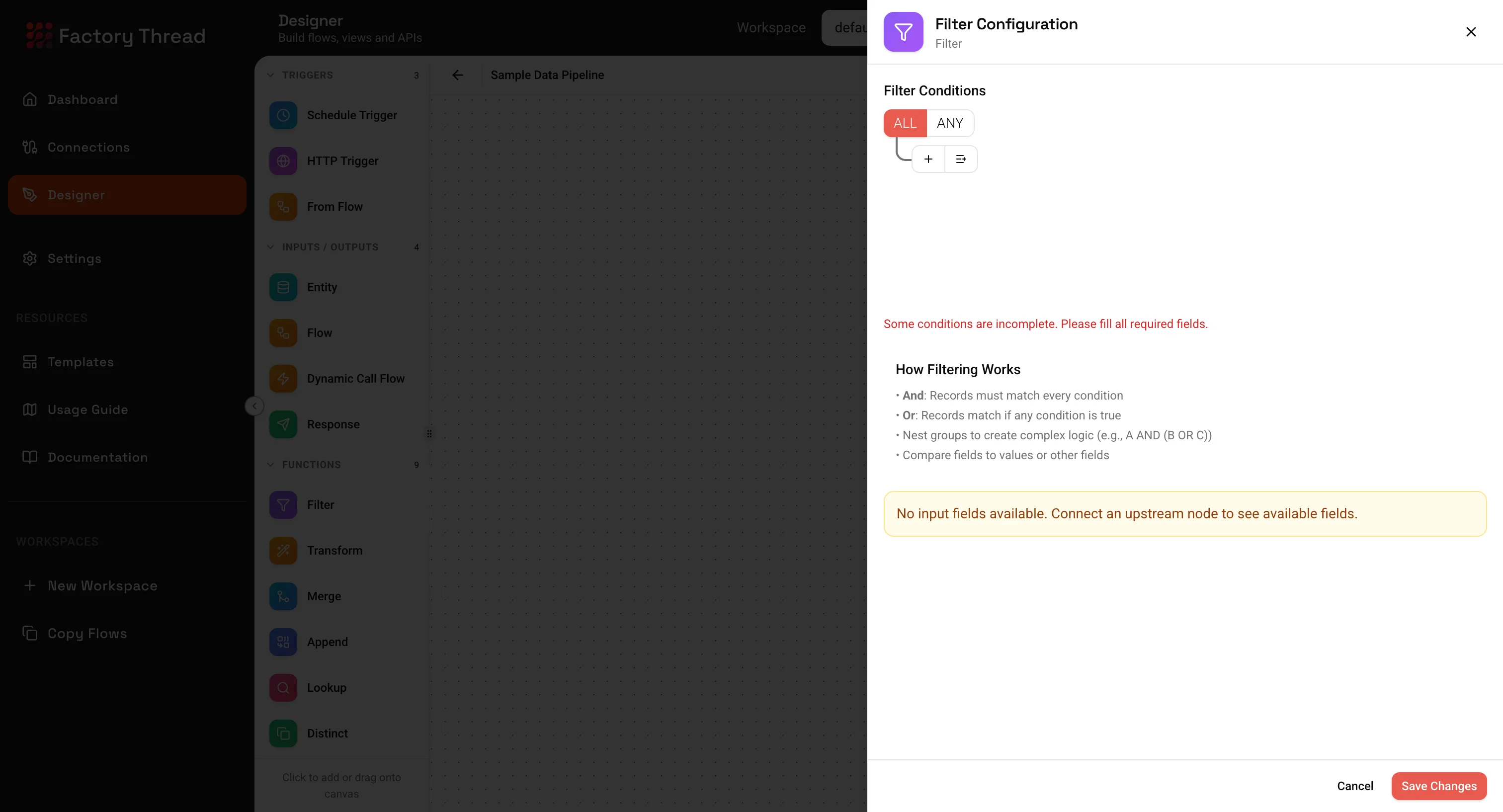

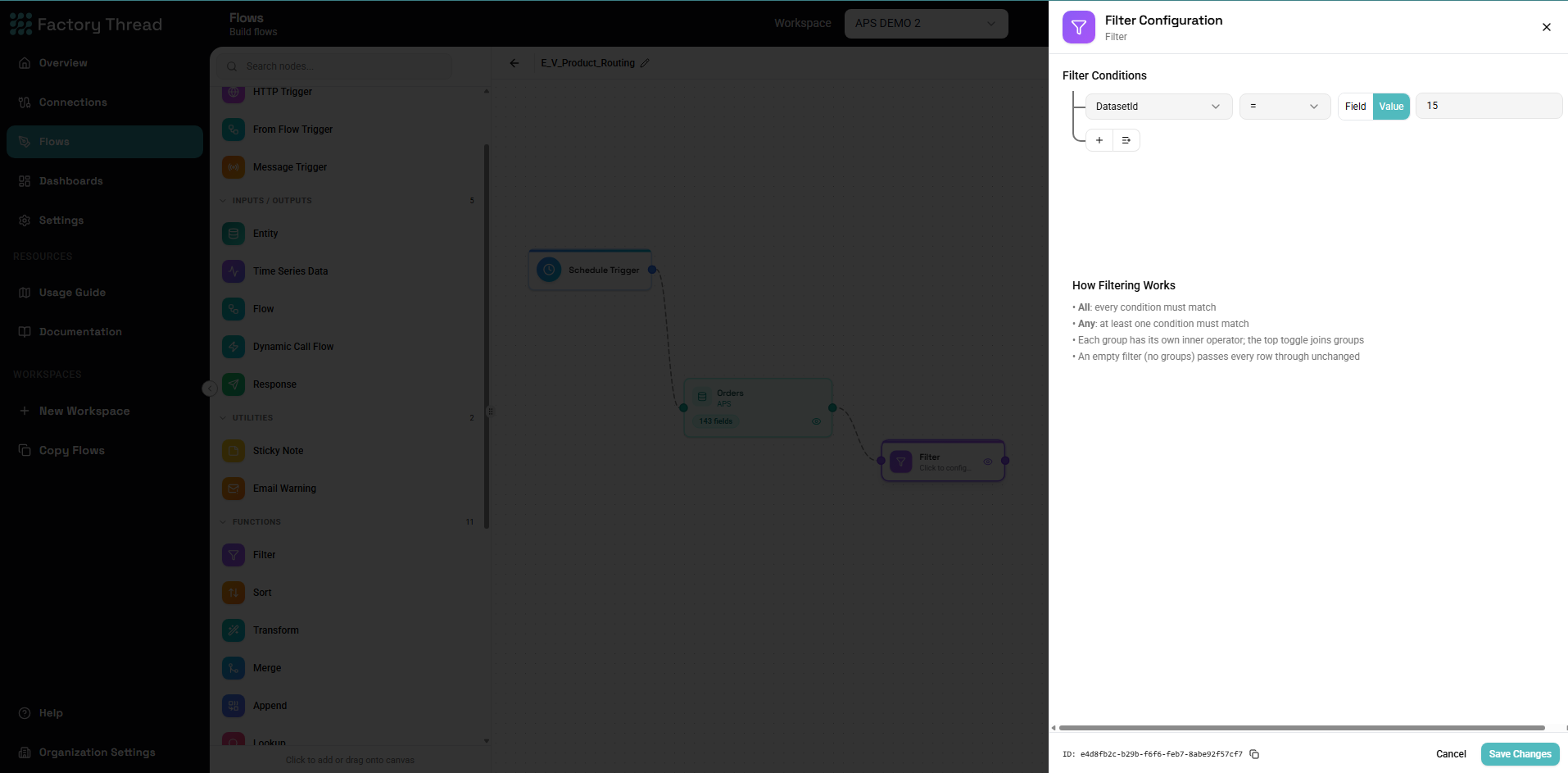

Configuration Panel

Condition Builder

The visual condition builder helps you create filter logic without writing code.

Adding a Condition

1. Click Add Condition
2. Select a Field from the dropdown
3. Choose an Operator
4. Enter or select a Value

Condition Components

Field The column to evaluate. The dropdown shows all available fields from upstream nodes with their data types.

Operator The comparison to perform. Available operators depend on the field's data type.

Value What to compare against. Can be:

• A literal value (text, number, date)
• Another field reference
• A parameter from a trigger
• An expression

Operators by Data Type

Text Operators

Operator	Description	Example
Equals	Exact match (case-sensitive)	Name = "John"
Not equals	Does not match	Status ≠ "Deleted"
Contains	Text includes substring	Email contains "@gmail"
Not contains	Text excludes substring	Notes not contains "error"
Starts with	Text begins with	Code starts with "PRD-"
Ends with	Text ends with	File ends with ".pdf"
Is empty	Null or empty string	Description is empty
Is not empty	Has a value	Name is not empty
In	Matches any in list	Status in ["Active", "Pending"]
Not in	Matches none in list	Type not in ["Test", "Demo"]
Matches pattern	Regex match	Phone matches "^\d3-\d4$"

Number Operators

Operator	Description	Example
Equals	Exact numeric match	Quantity = 100
Not equals	Does not equal	Amount ≠ 0
Greater than	Larger than value	Price > 50
Greater or equal	At least value	Score >= 80
Less than	Smaller than value	Age < 18
Less or equal	At most value	Discount <= 0.25
Between	Within range (inclusive)	Rating between 3 and 5
Not between	Outside range	Value not between -1 and 1
Is null	No value	Amount is null
Is not null	Has a value	Price is not null
In	Matches any in list	Priority in [1, 2, 3]

Date Operators

Operator	Description	Example
Equals	Same date	OrderDate = 2024-01-15
Not equals	Different date	Created ≠ today
Before	Earlier than	DueDate before today
After	Later than	StartDate after 2024-01-01
On or before	Same or earlier	EndDate on or before 2024-12-31
On or after	Same or later	HireDate on or after 2020-01-01
Between	Within date range	Created between 2024-01-01 and 2024-03-31
Is null	No date value	CompletedDate is null
Is not null	Has date value	ShippedDate is not null

Special Date Values:

• today - Current date
• yesterday - Previous date
• tomorrow - Next date
• startOfWeek - Beginning of current week
• startOfMonth - First day of current month
• startOfYear - January 1st of current year

Boolean Operators

Operator	Description	Example
Is true	Value is true	IsActive is true
Is false	Value is false	IsDeleted is false
Is null	No boolean value	HasOptedIn is null

Combining Conditions

AND Logic

All conditions must be true for the row to pass:

Status = "Active"
AND
Amount > 1000
AND
Region = "West"

Only rows meeting ALL three criteria pass through.

OR Logic

Any condition can be true for the row to pass:

Status = "Active"
OR
Status = "Pending"
OR
Priority = "High"

Rows meeting ANY of the three criteria pass through.

Mixed Logic

Combine AND/OR with groups:

(Status = "Active" OR Status = "Pending")
AND
(Region = "East" OR Region = "West")
AND
Amount > 500

This finds active/pending items in East/West regions over $500.

Creating Groups

1. Click Add Group
2. Set group logic (AND/OR)
3. Add conditions within the group
4. Nest groups for complex logic

Comparing to Fields

Instead of literal values, compare fields to each other:

Example: Find items where actual exceeds budget

ActualAmount > BudgetAmount

Example: Find orders shipped after due date

ShipDate > DueDate

Using Parameters

Reference trigger parameters in conditions:

From HTTP Trigger:

CustomerID = ${customerId}
Region in ${selectedRegions}

From Schedule Trigger:

ProcessedDate >= ${lastRunDate}

Using Expressions

For dynamic values, use expressions:

Relative dates:

OrderDate > DATEADD(today, -30, "day")

Calculated comparisons:

Amount > ${baseAmount} * 1.1

Common Filter Patterns

Filter by Status

Active items only:

Status = "Active"

Exclude deleted:

IsDeleted = false
OR
IsDeleted is null

Filter by Date Range

Last 30 days:

CreatedDate >= DATEADD(today, -30, "day")

Specific month:

OrderDate >= 2024-01-01
AND
OrderDate < 2024-02-01

Year to date:

TransactionDate >= startOfYear
AND
TransactionDate <= today

Filter Null Values

Remove nulls:

ImportantField is not null

Find nulls (for cleanup):

RequiredField is null

Filter by List

Specific regions:

Region in ["North", "South", "East", "West"]

Exclude test data:

CustomerType not in ["Test", "Demo", "Internal"]

Numeric Ranges

High-value orders:

OrderTotal >= 1000

Outlier detection:

Value < 0
OR
Value > 10000

Text Patterns

Email domain:

Email ends with "@company.com"

Product codes:

SKU starts with "PROD-"
AND
SKU not contains "DISC"

Advanced Techniques

Null-Safe Comparisons

When fields might be null:

Risky:

Amount > 100  # Nulls might behave unexpectedly

Safe:

Amount is not null
AND
Amount > 100

Case-Insensitive Matching

The Equals operator is case-sensitive. For case-insensitive:

Option 1: Use Contains (if acceptable)

LOWER(Status) contains "active"

Option 2: List all variations

Status in ["Active", "ACTIVE", "active"]

Filtering Before Joins

Filter early for better performance:

Good: Filter → Merge

• Reduces data before expensive join
• Faster execution

Avoid: Merge → Filter

• Joins all data first
• Then filters (slower)

Multiple Passes

For complex logic, use multiple Filter nodes:

[Entity] → [Filter: Active] → [Filter: High Value] → [Filter: Recent]

This creates a clear pipeline of conditions.

Best Practices

Filter Early

Apply filters as early as possible in your workflow:

• Reduces data volume for subsequent operations
• Improves performance
• Uses less memory

Be Specific

Precise conditions prevent unexpected results:

Vague:

Amount > 0

Specific:

Amount > 0
AND
Amount is not null
AND
Status = "Completed"

Test Edge Cases

Verify your filter handles:

• Null values
• Empty strings
• Boundary values (exactly equal to threshold)
• Special characters in text

Document Complex Logic

Use meaningful descriptions:

• Name the Filter node: "Filter: Active Premium Customers"
• Add comments about business rules

Preview Often

After configuring:

1. Click the Filter node
2. Click Preview
3. Verify correct rows pass through
4. Check row count matches expectations

Troubleshooting

No Rows Pass Through

Too restrictive:

• Review each condition
• Check for AND logic that's impossible to satisfy
• Verify field values exist in data

Data type mismatch:

• "100" (text) ≠ 100 (number)
• Check field types in schema

Null handling:

• Nulls don't match most conditions
• Add explicit null handling

Too Many Rows Pass Through

Too loose:

• Check OR conditions aren't too broad
• Verify all conditions are being applied
• Look for always-true conditions

Wrong field:

• Ensure you selected the correct column
• Verify field values are what you expect

Unexpected Results

Case sensitivity:

• "Active" ≠ "active"
• Use appropriate case or case-insensitive patterns

Whitespace:

• " Value" ≠ "Value"
• Use TRIM() if needed

Date formats:

• Ensure dates are parsed correctly
• Check timezone handling

Performance Tips

Index-Friendly Filters

If filtering database data, use conditions that can use indexes:

• Equality conditions (=)
• Range conditions (>, <, BETWEEN)
• Prefix matches (starts with)

Avoid:

• Functions on columns (LOWER(field) = ...)
• Middle/suffix matches (contains, ends with)

Limit Before Filter

For very large tables:

1. Use Entity node with row limit
2. Then apply Filter
3. Expand limit once logic is confirmed

Multiple Conditions vs Multiple Filters

One Filter with multiple conditions:

• Usually more efficient
• All conditions evaluated together

Multiple Filter nodes:

• Easier to debug
• Better for very complex logic
• Slight overhead

Examples

E-commerce: Recent High-Value Orders

OrderDate >= DATEADD(today, -7, "day")
AND
OrderTotal >= 500
AND
Status in ["Confirmed", "Processing", "Shipped"]

HR: Eligible Employees

EmploymentType = "Full-Time"
AND
HireDate <= DATEADD(today, -90, "day")
AND
Status = "Active"
AND
Department not in ["Contractors", "Interns"]

Inventory: Low Stock Alerts

QuantityOnHand < ReorderPoint
AND
IsActive = true
AND
SupplierStatus = "Active"

Financial: Transactions for Audit

(TransactionType = "Refund" AND Amount > 1000)
OR
(TransactionType = "Adjustment")
OR
(ApprovalStatus = "Override")

Next Steps

• Transform Function - Add calculated fields
• Condition Function - Branch based on conditions
• Merge Function - Combine filtered data
• Building Flows - Complete workflows
