Response Node

The Response node returns data from your workflow. It's required for HTTP-triggered flows (APIs) and FromFlow-triggered flows (sub-flows), defining what data is sent back to the caller.

How It Works

The Response node:

1. Receives data from upstream processing
2. Formats the output according to configuration
3. Returns the data to the trigger source
   • For HTTP triggers: Returns as API response
   • For FromFlow triggers: Returns to calling flow

Adding a Response

1. Drag Response from the Outputs section of the Element Panel
2. Connect it to your final processing node
3. Click the Response node to configure output format

Note: Response is typically the last node in a flow path.

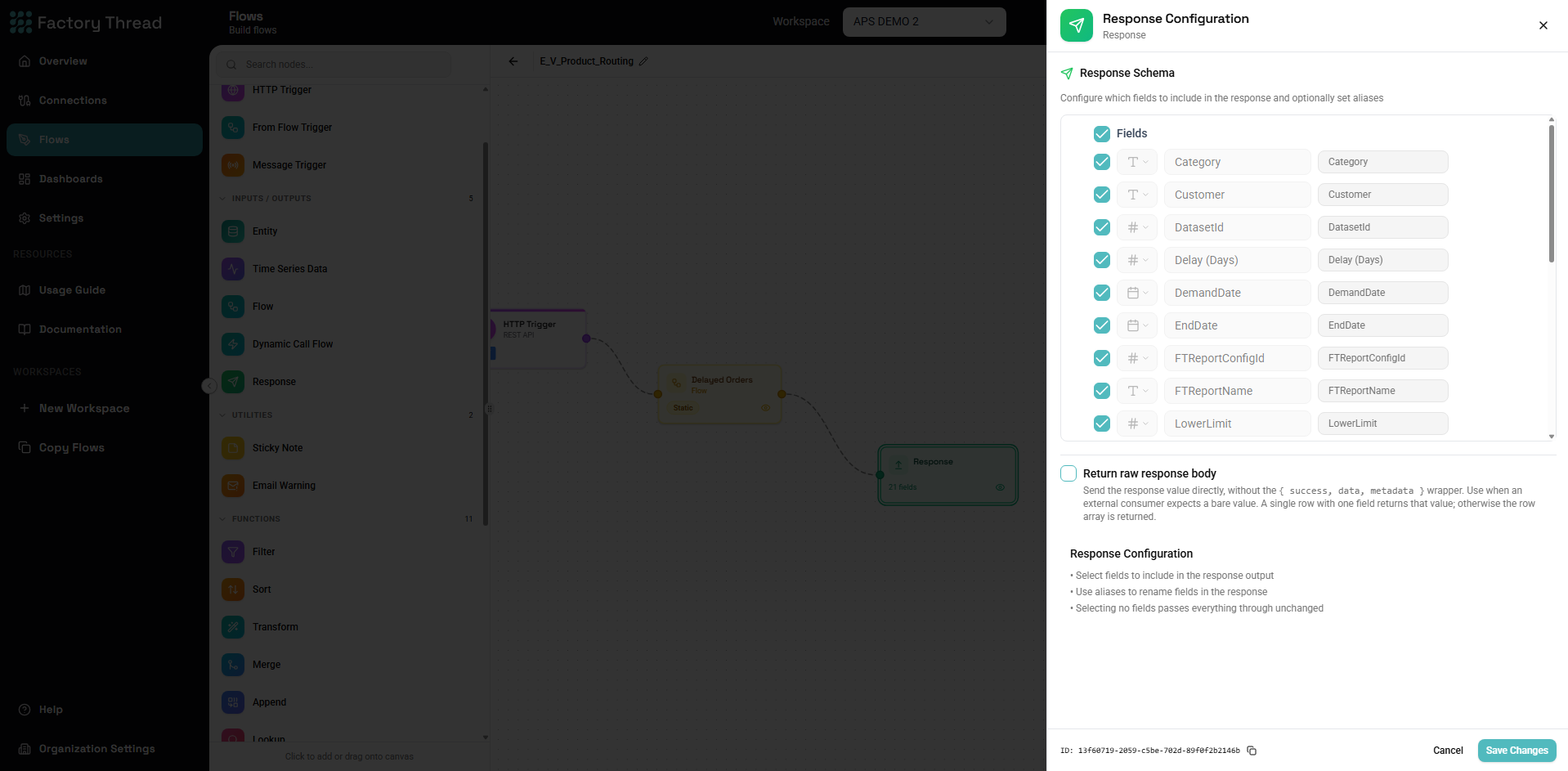

Configuration Panel

Data Source

Input Data: The Response node receives whatever data reaches it:

• Filtered rows
• Transformed fields
• Aggregated results
• Single values or arrays

Field Selection

Choose which fields to include in the response:

All Fields: Every field from the input is included.

Selected Fields:

Include	Field Name	Output Name
✓	CustomerID	id
✓	CustomerName	name
✓	Email	email
	InternalCode	(excluded)
✓	TotalOrders	orderCount

Benefits of selection:

• Cleaner API responses
• Hide internal fields
• Rename for external consumers
• Control payload size

Response Format (HTTP Triggers)

For HTTP-triggered flows, configure the response format:

JSON (Default)

Standard JSON response:

{
  "data": [
    { "id": "C001", "name": "Acme Corp", "email": "info@acme.com" },
    { "id": "C002", "name": "Beta Inc", "email": "contact@beta.com" }
  ],
  "count": 2,
  "success": true
}

Flat JSON Array

Simple array without wrapper:

[
  { "id": "C001", "name": "Acme Corp", "email": "info@acme.com" },
  { "id": "C002", "name": "Beta Inc", "email": "contact@beta.com" }
]

Single Object

When returning one record:

{ "id": "C001", "name": "Acme Corp", "email": "info@acme.com" }

Paginated Response

Include pagination metadata:

{
  "data": [...],
  "pagination": {
    "page": 1,
    "pageSize": 20,
    "totalCount": 156,
    "totalPages": 8
  }
}

HTTP Status Code

Set the HTTP status code for the response:

Success codes:

• 200 OK - Standard success (default)
• 201 Created - Resource created
• 204 No Content - Success with no body

Client error codes:

• 400 Bad Request - Invalid input
• 404 Not Found - Resource not found

Conditional status: Configure status based on data:

Status: IF({recordCount} > 0, 200, 404)

Response Headers

Add custom HTTP headers:

Header	Value
Content-Type	application/json
X-Total-Count	{totalCount}
Cache-Control	no-cache

Sub-Flow Responses

For FromFlow-triggered flows:

Response Data

Return data to the calling flow:

What gets returned:

• All fields reaching the Response node
• Or selected/renamed fields

Received by parent:

• CallFlow node receives the response
• Fields merged with parent flow data

Success/Error Indication

Include processing status:

Transform before Response:

success = true
errorMessage = null

Or on failure:

success = false
errorMessage = "Validation failed: missing required field"

Parent flow checks:

[CallFlow] → [Condition: success = true?]
                ├── True → [Continue]
                └── False → [Handle error]

Multiple Response Paths

A flow can have multiple Response nodes for different scenarios:

Conditional Responses

Flow structure:

[Process] → [Condition: Valid?]
               ├── True → [Success Response: 200]
               └── False → [Error Response: 400]

Each path has its own Response configuration.

Early Return

Return early based on conditions:

[Input] → [Condition: Cached?]
             ├── True → [Response: cached data]
             └── False → [Process] → [Response: fresh data]

Response Node Best Practices

Consistent Structure

Always return consistent schemas:

Good:

// Success
{ "success": true, "data": {...} }

// Error
{ "success": false, "error": { "code": "NOT_FOUND", "message": "..." } }

Avoid:

// Inconsistent - sometimes data at root, sometimes wrapped
{ "id": "123", "name": "..." }
// vs
{ "result": { "id": "123", "name": "..." } }

Include Metadata

Add helpful metadata:

{
  "data": [...],
  "metadata": {
    "count": 50,
    "timestamp": "2024-01-15T10:30:00Z",
    "version": "1.0"
  }
}

Error Information

Provide useful error details:

{
  "success": false,
  "error": {
    "code": "VALIDATION_ERROR",
    "message": "Invalid email format",
    "field": "email",
    "details": "Expected valid email address"
  }
}

Avoid Exposing Internals

Filter out internal fields:

Don't include:

• Internal IDs
• System timestamps
• Debug information
• Sensitive data

Transform before Response:

// Remove internal fields
[Map: select external fields only] → [Response]

Empty Results

Handle empty results gracefully:

Empty Array

When no data matches:

{
  "data": [],
  "count": 0,
  "success": true
}

404 for Single Resource

When a specific resource isn't found:

Use Condition:

[Lookup] → [Condition: Found?]
              ├── True → [Response 200]
              └── False → [Response 404]

Large Responses

For large datasets:

Pagination

Return paginated results:

{
  "data": [...],  // 20 items
  "page": 2,
  "pageSize": 20,
  "totalCount": 350,
  "hasMore": true
}

Streaming (if supported)

For very large responses:

• Consider file output instead
• Or batch processing
• Or streaming endpoints

Limiting

Set maximum response size:

In flow:

[Data] → [Limit: 1000 rows] → [Response]

With warning:

{
  "data": [...],
  "truncated": true,
  "message": "Results limited to 1000 records"
}

Performance Considerations

Field Selection

Select only needed fields:

• Reduces serialization time
• Smaller network payload
• Faster client processing

Response Size

Monitor response sizes:

• Large responses slow down clients
• Consider pagination
• Compress if possible

Caching Headers

Add caching headers when appropriate:

Cache-Control: max-age=300
ETag: "abc123"

Troubleshooting

Empty Response

Possible causes:

1. No data reaching Response node
2. All fields filtered out
3. Upstream node returning empty

Solutions:

• Preview nodes to trace data flow
• Check filter conditions
• Verify field selection

Wrong Data

Possible causes:

1. Wrong branch reaching Response
2. Field mapping incorrect
3. Transform errors

Solutions:

• Trace data path
• Preview at each step
• Verify field mappings

Missing Fields

Possible causes:

1. Field not selected
2. Field name mismatch
3. Upstream transform removed field

Solutions:

• Check field selection
• Review upstream transforms
• Verify field names

HTTP Errors

400/500 errors:

• Check error Response configuration
• Verify status code logic
• Review error paths

Examples

API Endpoint Response

Flow: Get customers API

[HTTP Trigger] → [Entity: Customers] → [Filter] → [Map] → [Response]

Response configuration:

• Format: JSON with wrapper
• Status: 200
• Fields: id, name, email, status

Output:

{
  "success": true,
  "data": [
    { "id": "C001", "name": "Acme", "email": "info@acme.com", "status": "active" }
  ],
  "count": 1
}

Sub-Flow Response

Flow: Validate order (sub-flow)

[FromFlow: orderId, items] → [Validate] → [Response]

Response fields:

• isValid (boolean)
• errors (array)
• warnings (array)

Parent receives:

{ "isValid": true, "errors": [], "warnings": ["Shipping address not verified"] }

Error Response

Flow: Update resource API

[HTTP Trigger] → [Entity] → [Condition: Found?]
                               ├── True → [Update] → [Response 200]
                               └── False → [Response 404]

404 Response:

{
  "success": false,
  "error": {
    "code": "NOT_FOUND",
    "message": "Resource with ID xyz not found"
  }
}

Paginated List

Flow: List products API

[HTTP Trigger: page, pageSize] → [Entity with offset] → [Count total] → [Response]

Response:

{
  "data": [...],
  "pagination": {
    "page": 2,
    "pageSize": 25,
    "totalCount": 156,
    "totalPages": 7,
    "hasNext": true,
    "hasPrev": true
  }
}
