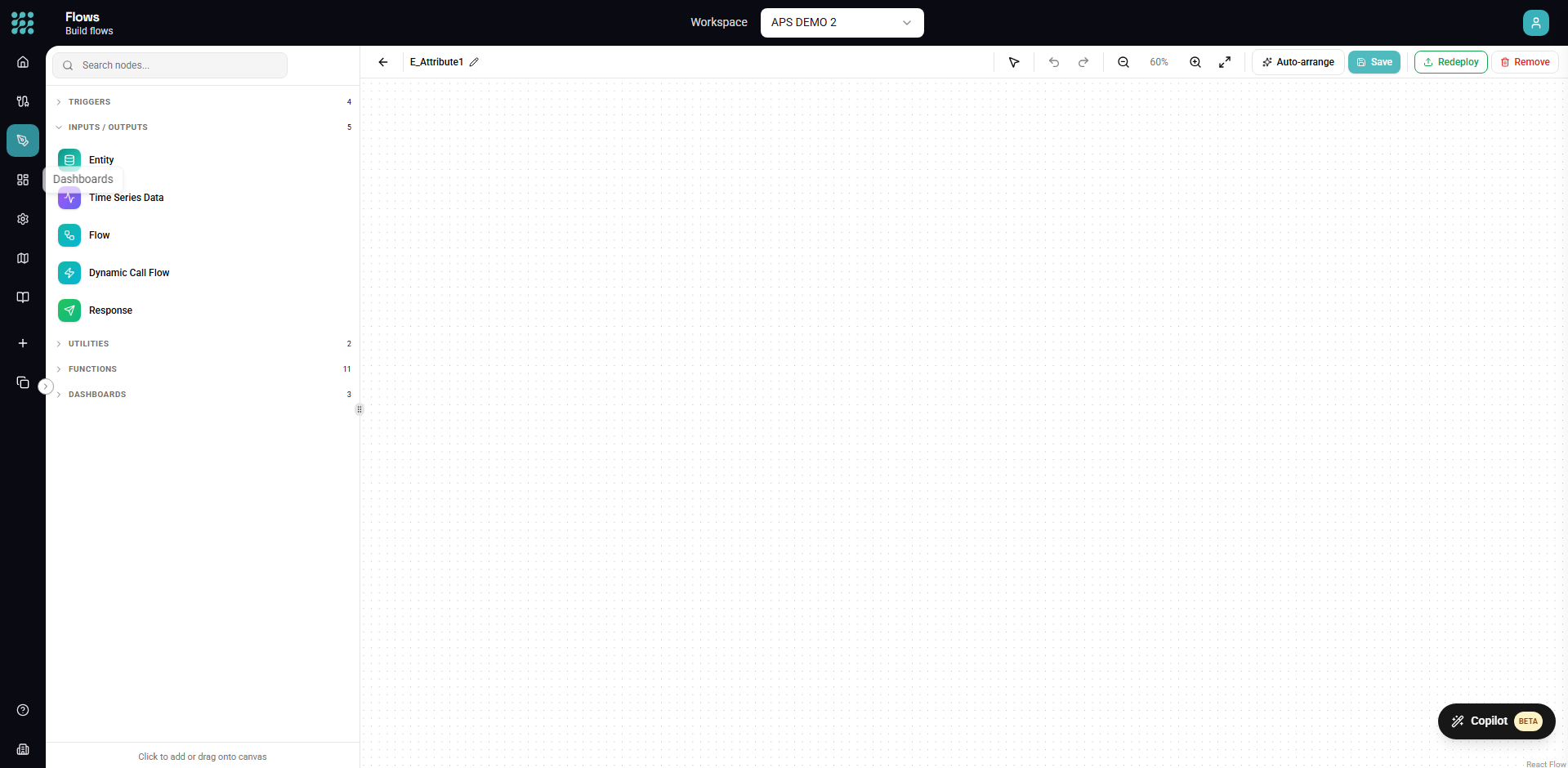

Action Nodes

Action nodes define what happens with your data after transformation. They can write data to destinations, call external APIs, send notifications, or return responses for API endpoints.

Response Node​

The Response node defines what data is returned when a flow is called via HTTP or from another flow.

When to Use​

  • HTTP Triggers - Define the API response body
  • From Flow Triggers - Define output data for calling flows
  • Manual execution - Control what appears in preview results

Configuration​

Response Data Select which fields to include in the response:

  • All fields from the incoming data
  • Specific fields only
  • Transformed field names

Response Format For HTTP triggers:

  • JSON (default)
  • CSV
  • XML

Example​

For an API that returns customer data:

  1. Transform node filters and shapes data
  2. Response node selects: CustomerID, Name, Email, Status
  3. HTTP trigger returns JSON array of these fields

Write Data Action​

The Write Data action saves data to a database, file, or other destination.

Configuration​

Destination Select where to write:

  • Database table (via connection)
  • File export
  • API endpoint

Write Mode

ModeDescription
InsertAdd new rows only
UpdateModify existing rows
UpsertInsert or update based on key
ReplaceClear table and insert all
AppendAdd to existing data

Field Mapping Map source fields to destination columns:

  • Auto-map by matching names
  • Manual mapping for different names
  • Skip fields you don't want to write

Key Fields (for Update/Upsert) Specify which fields identify unique rows.

Example: Database Insert​

  1. Source data flows into Write Data action
  2. Select destination table from your database connection
  3. Map fields: SourceField → TableColumn
  4. Choose Insert mode
  5. Data is written when the flow executes

Call API Action​

The Call API action makes HTTP requests to external services.

Configuration​

Endpoint The URL to call. Can include variables from your data:

https://api.example.com/customers/${CustomerID}

Method HTTP method: GET, POST, PUT, PATCH, DELETE

Headers Custom headers for the request:

  • Content-Type
  • Authorization
  • Custom headers

Body (for POST/PUT/PATCH) Request body options:

  • JSON from upstream data
  • Custom JSON template
  • Form data

Authentication

  • None
  • Basic Auth
  • Bearer Token
  • API Key
  • OAuth (from connection)

Response Handling​

The API response can be:

  • Passed to downstream nodes
  • Used to control flow logic
  • Logged for debugging

Example: Webhook Notification​

  1. Configure endpoint: https://hooks.slack.com/services/xxx
  2. Method: POST
  3. Body: JSON with message from your data
  4. Headers: Content-Type: application/json

Send Notification Action​

The Send Notification action sends alerts via email or webhook.

Email Notifications​

Configuration:

  • To - Recipient email addresses
  • Subject - Email subject line (can include variables)
  • Body - Email content (text or HTML)
  • Attachments - Optionally attach data as CSV/Excel

Variables in Templates:

Subject: Order ${OrderID} has been processed
Body: Dear ${CustomerName}, your order is complete.

Webhook Notifications​

Configuration:

  • URL - Webhook endpoint
  • Payload - JSON body to send
  • Headers - Custom headers

Error Handling​

Actions can fail for various reasons. Configure error handling:

On Error Options​

OptionBehavior
Stop FlowHalt execution, mark as failed
ContinueLog error, continue processing
RetryAttempt again (with backoff)
BranchRoute to error handling path

Retry Configuration​

For transient failures:

  • Max Retries - Number of attempts
  • Retry Delay - Wait time between attempts
  • Backoff - Exponential backoff multiplier

Action Groups​

For complex flows, organize related actions into groups.

Creating Action Groups​

  1. Select multiple action nodes
  2. Right-click and choose Group
  3. Name the group meaningfully

Group Features​

Collapse/Expand

  • Collapse to simplify the canvas view
  • Expand to edit contained actions

Visual Styling Choose from color themes:

  • Emerald (default)
  • Violet
  • Amber
  • Cyan
  • Rose

Naming Double-click the group header to rename.

When to Use Groups​

  • Logical organization - Group related steps (e.g., "Update CRM")
  • Complex error handling - Group try/catch patterns
  • Documentation - Self-documenting workflow sections

Best Practices​

Idempotency​

Design actions to be safely repeatable:

  • Use upsert instead of insert where possible
  • Include unique identifiers in API calls
  • Handle duplicate requests gracefully

Error Handling​

Always plan for failures:

  • Network timeouts
  • API rate limits
  • Database constraints
  • Invalid data

Testing​

Before deploying:

  • Preview with test data
  • Check error handling paths
  • Verify destination data

Performance​

For large data volumes:

  • Batch writes when possible
  • Use async actions for non-blocking operations
  • Monitor execution times
