HTTP Trigger

The HTTP Trigger exposes your flow as a REST API endpoint. External systems can call this endpoint to execute your flow, pass parameters, and receive results in real-time. Use it for building APIs, webhook receivers, and real-time integrations.

When to Use HTTP Triggers

Ideal for:

• Building REST APIs for external consumption
• Receiving webhooks from third-party services
• Real-time data requests
• Synchronous integrations with other systems
• Creating OData endpoints for reporting tools

Not ideal for:

• Recurring scheduled tasks (use Schedule Trigger)
• Long-running batch processes (consider async patterns)
• Internal-only reusable logic (use From Flow Trigger)

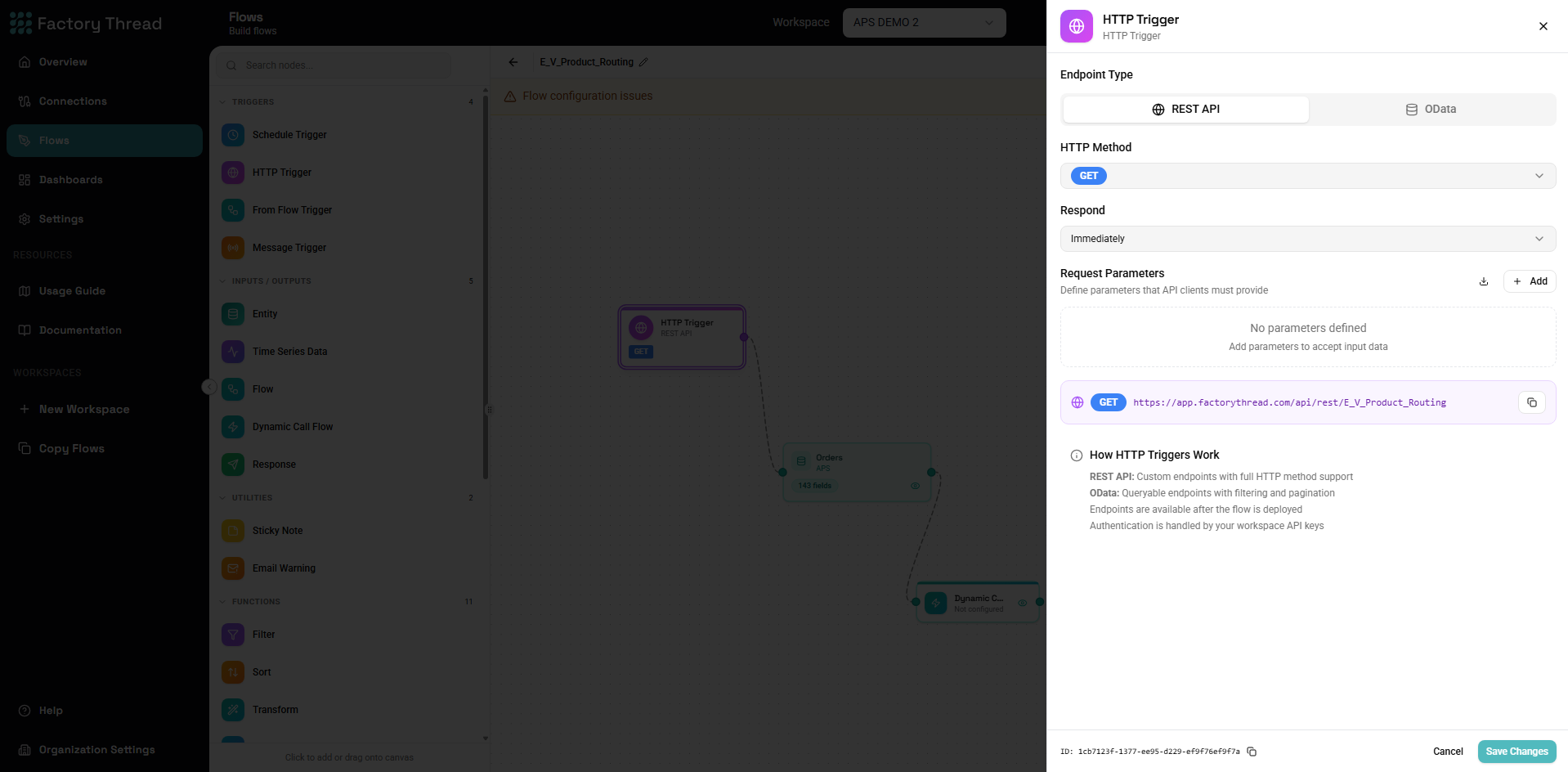

Adding an HTTP Trigger

1. Open your flow in the Designer
2. Click Action in the toolbar
3. Select HTTP Trigger
4. The trigger node appears on the canvas
5. Click the node to configure the endpoint

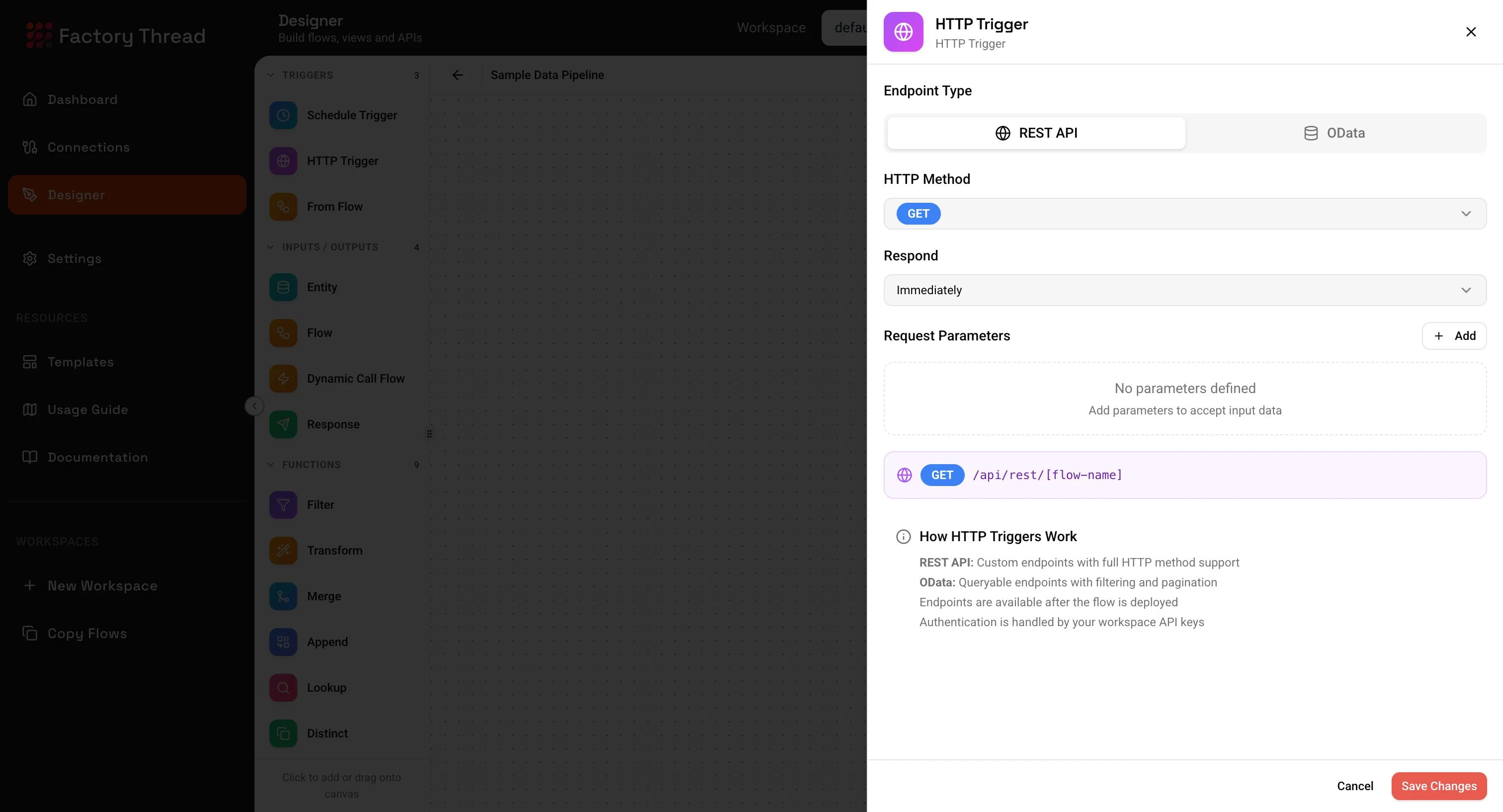

Configuration Panel

Endpoint Settings

Endpoint Path The URL path for your API endpoint:

• Auto-generated: System creates a unique path
• Custom: Specify your own path (e.g., /customers, /orders/{id})

Full URL Format:

https://api.factorythread.com/v1/{workspace-id}/flows/{flow-id}/{path}

Or with custom API domain:

https://your-api.factorythread.com/{path}

Path Parameters Include dynamic segments in your path using curly braces:

/customers/{customerId}
/orders/{orderId}/items/{itemId}
/reports/{year}/{month}

Path parameters are automatically extracted and available as input parameters.

HTTP Methods Select which HTTP methods this endpoint accepts:

Method	Typical Use	Has Body
GET	Retrieve data	No
POST	Create data, complex queries	Yes
PUT	Replace data	Yes
PATCH	Partial update	Yes
DELETE	Remove data	No

You can enable multiple methods on a single endpoint if your flow handles them differently.

Authentication

API Key Required (Recommended) When enabled, requests must include a valid API key:

GET /api/endpoint HTTP/1.1
Authorization: Bearer your-api-key-here

Or as a query parameter:

GET /api/endpoint?api_key=your-api-key-here

Public Access When API key is not required:

• Anyone with the URL can call your endpoint
• Use only for truly public data
• Consider rate limiting implications

Security Best Practice: Always require API key authentication unless you have a specific reason for public access.

Request Schema

Define the expected input structure for your endpoint:

Query Parameters

For GET requests and optional filters on other methods:

Parameters:
  - name: customerId
    type: string
    required: true
    description: The customer identifier

  - name: includeDetails
    type: boolean
    required: false
    default: false
    description: Include extended details

  - name: limit
    type: number
    required: false
    default: 100
    description: Maximum results to return

Accessing in Flow: Query parameters become available as ${paramName} in your flow nodes.

Request Body

For POST, PUT, and PATCH requests:

JSON Schema Definition:

{
  "type": "object",
  "properties": {
    "customerId": {
      "type": "string",
      "description": "Customer identifier"
    },
    "orderDate": {
      "type": "string",
      "format": "date"
    },
    "items": {
      "type": "array",
      "items": {
        "type": "object",
        "properties": {
          "productId": { "type": "string" },
          "quantity": { "type": "number" }
        }
      }
    }
  },
  "required": ["customerId", "items"]
}

Visual Schema Builder:

1. Click Add Field
2. Enter field name and select type
3. Mark as required if needed
4. Add nested objects or arrays as needed

Path Parameters

Automatically extracted from your endpoint path:

Path: /customers/{customerId}/orders/{orderId}

Generates parameters:

• customerId (string)
• orderId (string)

Response Configuration

Response Format

JSON (default) Standard JSON response for most API use cases.

OData Enables OData query capabilities for reporting tools:

• $select - Choose specific fields
• $filter - Filter results
• $orderby - Sort results
• $top / $skip - Pagination

CSV Returns data as comma-separated values.

XML Returns data as XML document.

Response Schema

Define the structure of successful responses using the Response node in your flow.

HTTP Status Codes

Your flow can return different status codes:

Code	Meaning	When to Use
200	OK	Successful GET, PUT, PATCH
201	Created	Successful POST that creates
204	No Content	Successful DELETE
400	Bad Request	Invalid input data
401	Unauthorized	Missing/invalid API key
403	Forbidden	Valid key, insufficient permissions
404	Not Found	Resource doesn't exist
500	Server Error	Unhandled flow error

Advanced Options

Timeout Maximum time (in seconds) for the request:

• Default: 30 seconds
• Maximum: 300 seconds (5 minutes)
• For longer operations, consider async patterns

Rate Limiting Limit requests per time period:

• Per API key
• Per IP address
• Custom rules

CORS Settings For browser-based clients:

• Allowed origins
• Allowed headers
• Allowed methods

Caching Cache responses for repeated requests:

• Cache duration
• Cache key (based on parameters)
• Cache invalidation

Using Request Data in Your Flow

Accessing Parameters

All request data is available in your flow nodes:

Path Parameters:

${customerId}    # From /customers/{customerId}

Query Parameters:

${limit}         # From ?limit=100
${startDate}     # From ?startDate=2024-01-01

Body Fields:

${orderItems}    # From request body
${customer.name} # Nested fields

Headers:

${headers.X-Custom-Header}

Example: Filter by Request Parameter

1. HTTP Trigger with query param status
2. Entity node loads all orders
3. Filter node: Status equals ${status}
4. Response returns filtered orders

Example: Use Body Data

1. HTTP Trigger with POST body containing order data
2. Transform node processes the order
3. Entity node (Update mode) writes to database
4. Response confirms success

Building the Response

Response Node

Add a Response node to define your API output:

1. Add Response node to your flow
2. Connect it as the final step
3. Configure which fields to return
4. Set status codes for different scenarios

Response Structure

Simple Response:

{
  "id": "12345",
  "status": "success",
  "data": { ... }
}

List Response:

{
  "items": [...],
  "total": 150,
  "page": 1,
  "pageSize": 25
}

Error Response:

{
  "error": {
    "code": "INVALID_INPUT",
    "message": "Customer ID is required",
    "details": { ... }
  }
}

Conditional Responses

Use Condition nodes to return different responses:

If (order exists) → Return order details (200)
Else → Return not found error (404)

Testing HTTP Triggers

In the Designer

1. Deploy your flow
2. Click Test Endpoint in the trigger panel
3. Enter test parameters
4. View request and response

With cURL

# GET request
curl -X GET \
  "https://api.factorythread.com/v1/.../customers?status=active" \
  -H "Authorization: Bearer your-api-key"

# POST request
curl -X POST \
  "https://api.factorythread.com/v1/.../orders" \
  -H "Authorization: Bearer your-api-key" \
  -H "Content-Type: application/json" \
  -d '{"customerId": "123", "items": [...]}'

With Postman

1. Create new request
2. Enter your endpoint URL
3. Add Authorization header with API key
4. For POST/PUT, add JSON body
5. Send and inspect response

With Browser (GET only)

For simple GET requests, you can test in your browser:

https://api.factorythread.com/v1/.../endpoint?api_key=your-key&param=value

Note: Never expose API keys in browser URLs for production use.

OData Endpoints

Enable OData for Excel, Power BI, and other reporting tools:

OData Query Options

$select - Choose specific fields:

?$select=id,name,email

$filter - Filter results:

?$filter=status eq 'active'
?$filter=amount gt 1000 and region eq 'West'
?$filter=contains(name, 'Smith')

$orderby - Sort results:

?$orderby=created desc
?$orderby=lastName asc, firstName asc

$top & $skip - Pagination:

?$top=25&$skip=50  # Page 3 with 25 per page

$count - Include total count:

?$count=true

Connecting from Excel

1. Data → Get Data → From OData Feed
2. Enter your endpoint URL
3. Select authentication method
4. Choose tables/fields
5. Load data

Connecting from Power BI

1. Get Data → OData Feed
2. Enter endpoint URL
3. Configure authentication
4. Select and transform data
5. Load to model

Security Best Practices

API Key Management

• Generate unique keys per client/application
• Rotate keys periodically
• Revoke keys when no longer needed
• Use different keys for dev/staging/production

Input Validation

Always validate incoming data:

1. Check required fields are present
2. Validate data types
3. Sanitize string inputs
4. Validate ranges and formats

Rate Limiting

Protect against abuse:

• Set reasonable request limits
• Use per-key rate limits
• Implement exponential backoff

Error Handling

Never expose internal details:

Bad:

{
  "error": "SQL Error: SELECT * FROM customers WHERE id = '123' failed"
}

Good:

{
  "error": {
    "code": "DATA_ERROR",
    "message": "Unable to retrieve customer data"
  }
}

Performance Optimization

Response Time

• Filter data at the source (use Entity filters)
• Return only needed fields
• Use pagination for large datasets
• Consider caching for static data

Payload Size

• Compress responses (automatic with gzip)
• Paginate large results
• Allow clients to request partial data

Concurrency

• HTTP endpoints scale automatically
• Long-running operations may need queuing
• Consider async patterns for heavy processing

Troubleshooting

401 Unauthorized

• Check API key is valid
• Verify Authorization header format
• Ensure key has required permissions

400 Bad Request

• Review request body against schema
• Check required fields are provided
• Validate data types

500 Internal Server Error

• Check Insights for execution details
• Review flow logic for errors
• Verify connections are healthy

Slow Response

• Check execution duration in Insights
• Optimize slow nodes
• Consider caching
• Review data volumes

CORS Errors

• Verify CORS settings include your origin
• Check allowed methods
• Ensure headers are permitted

Examples

Customer Lookup API

Endpoint: GET /customers/{id}

Flow:

1. HTTP Trigger extracts id
2. Entity loads customer where ID = ${id}
3. Response returns customer data

Create Order API

Endpoint: POST /orders

Body:

{
  "customerId": "C123",
  "items": [
    {"productId": "P456", "quantity": 2}
  ]
}

Flow:

1. HTTP Trigger parses body
2. Transform calculates totals
3. Entity writes to Orders table
4. Response returns order confirmation

Search API with Pagination

Endpoint: GET /products

Parameters: search, page, pageSize

Flow:

1. HTTP Trigger extracts parameters
2. Entity loads products with filter
3. Distinct removes duplicates
4. Response with pagination metadata

Next Steps

• FromFlow Trigger - Build reusable flows
• Schedule Trigger - Time-based automation
• Response Node - Configure API responses
• API Keys - Manage authentication
