From Flow Trigger

The From Flow Trigger enables your flow to be called from other flows, creating reusable, modular workflow components. Use it to build libraries of common operations that can be shared across multiple workflows.

When to Use From Flow Triggers

Ideal for:

• Reusable data transformations (e.g., address normalization)
• Shared business logic (e.g., pricing calculations)
• Common integrations (e.g., CRM lookup)
• Modular workflow design
• Testing isolated components

Not ideal for:

• Standalone automated workflows (use Schedule Trigger)
• External API access (use HTTP Trigger)
• Simple one-off operations

Understanding Subflow Architecture

Parent and Child Flows

┌─────────────────────────────────────────┐
│ Parent Flow                             │
│                                         │
│  [Trigger] → [Data] → [Call Flow] → ... │
│                            │            │
└────────────────────────────│────────────┘
                             ↓
┌─────────────────────────────────────────┐
│ Child Flow (has From Flow Trigger)      │
│                                         │
│  [From Flow] → [Process] → [Response]   │
│                                         │
└─────────────────────────────────────────┘

• Parent Flow: The flow that calls another flow
• Child Flow: The flow with the From Flow Trigger
• Input: Data passed from parent to child
• Output: Data returned from child to parent

Execution Flow

1. Parent flow reaches Call Flow node
2. Child flow executes with provided input
3. Child flow completes and returns output
4. Parent flow continues with child's output

Adding a From Flow Trigger

1. Open your flow in the Designer
2. Click Action in the toolbar
3. Select From Flow Trigger
4. The trigger node appears on the canvas
5. Click to configure input parameters

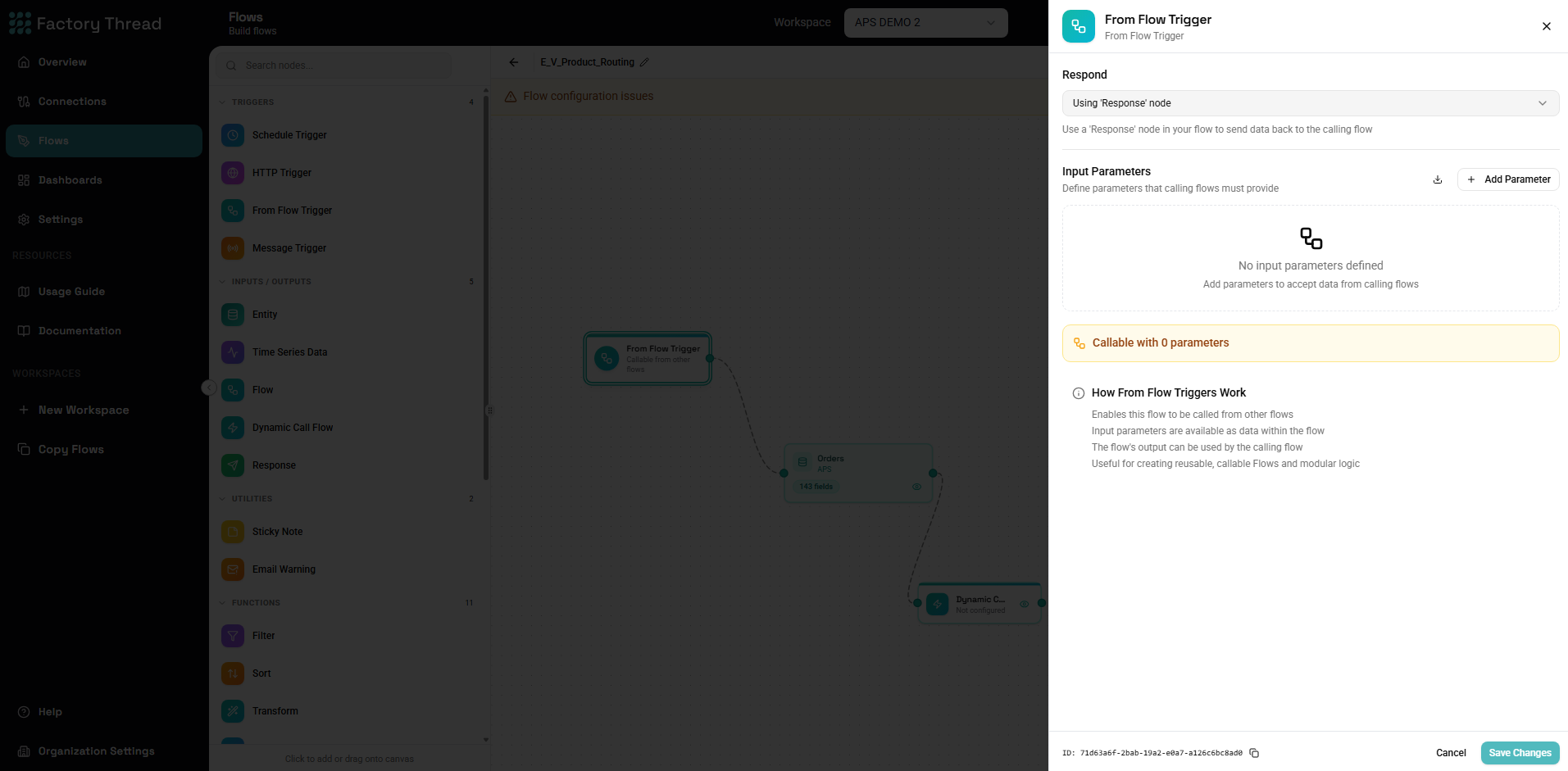

Configuration Panel

Basic Settings

Name (optional) A descriptive name for this trigger:

• "Customer Data Input"
• "Order Processing Entry"
• "Calculation Parameters"

Input Parameters

Define what data this flow expects when called:

Adding Parameters:

1. Click Add Parameter
2. Enter parameter name (e.g., customerId)
3. Select data type
4. Mark as required or optional
5. Add description (helps callers understand usage)

Parameter Types:

Type	Description	Example
Text	String values	Names, IDs, codes
Number	Numeric values	Quantities, amounts
Boolean	True/false	Flags, switches
Date	Date values	Start dates, deadlines
DateTime	Date and time	Timestamps
Object	Complex JSON	Nested data structures
Array	Lists	Multiple items

Example Parameter Configuration:

Parameters:
  - name: customerId
    type: text
    required: true
    description: Unique customer identifier

  - name: includeHistory
    type: boolean
    required: false
    default: false
    description: Include transaction history

  - name: startDate
    type: date
    required: false
    description: Filter data from this date

Input Schema

For complex inputs, define a complete schema:

Simple Parameters: Individual named values passed separately.

Object Input: A structured object with multiple fields:

{
  "customer": {
    "id": "C123",
    "name": "Acme Corp"
  },
  "options": {
    "includeDetails": true,
    "format": "detailed"
  }
}

Array Input: A list of items to process:

{
  "orderIds": ["O001", "O002", "O003"],
  "batchSize": 100
}

Using Input Parameters in Your Flow

Accessing Parameters

Parameters are available throughout your flow:

In Filter conditions:

CustomerID equals ${customerId}

In Transform expressions:

CONCAT("Customer: ", ${customerId})

In Entity queries:

WHERE customer_id = ${customerId}

Parameter Validation

Input validation happens automatically:

• Required parameters must be provided
• Types are checked and converted
• Missing required parameters cause an error

Default Values

For optional parameters:

• Define defaults in the configuration
• Flow uses default when parameter not provided
• Helps make flows more flexible

Building the Response

Response Node

Every callable flow should have a Response node:

1. Add Response node at the end of your flow
2. Connect it to your final transformation
3. Configure which data to return

Response Schema

Define what the calling flow receives:

Single Value:

{
  "result": "processed"
}

Data Record:

{
  "customer": {
    "id": "C123",
    "name": "Acme Corp",
    "status": "active"
  }
}

Data Collection:

{
  "items": [...],
  "count": 150
}

No Response

If your flow doesn't return data:

• Still add a Response node
• Configure empty response
• Calling flow knows execution completed

Calling From Other Flows

Call Flow Node

To use a flow with From Flow Trigger:

1. In your parent flow, add Call Flow node
2. Select the target flow
3. Map input parameters
4. Handle the returned data

Parameter Mapping

Static Values:

customerId = "C12345"

From Upstream Data:

customerId = ${CustomerRecord.ID}

Expressions:

fullName = CONCAT(${FirstName}, " ", ${LastName})

Handling Output

The Call Flow node's output contains:

• Data returned by the Response node
• Execution metadata
• Error information if failed

Connect subsequent nodes to process returned data.

Dynamic Call Flow

For advanced scenarios, determine which flow to call at runtime:

Configuration

1. Add Dynamic Call Flow node
2. Specify a field containing the flow ID or name
3. Map common parameters

Use Cases

• Configuration-driven: Flow ID stored in config table
• Multi-tenant: Different flows for different clients
• A/B testing: Route to different flow versions
• Fallback logic: Primary flow with backup

Example

┌─────────────────────────────────────────┐
│  Data contains: processorFlowId = "F123"│
│                                         │
│  Dynamic Call Flow uses ${processorFlowId}
│  to determine which flow to execute     │
└─────────────────────────────────────────┘

Structured Response

Dynamic Call Flow returns a structured response with status and results:

Success Response:

{
  "status": true,
  "response": [
    { "field1": "value1", "field2": "value2" },
    { "field1": "value3", "field2": "value4" }
  ]
}

Failure Response:

{
  "status": false,
  "response": "Flow 'ProcessOrder' returned no data"
}

Output Fields:

Field	Type	Description
status	Boolean	true if flow executed successfully, false otherwise
response	Array or String	Array of results on success, error message on failure

Using the Response:

[Dynamic Call Flow] → [Condition: ${status} = true]
                              ↓ Yes                    ↓ No
                     [Process ${response}]    [Handle Error: ${response}]

Error Handling

Child Flow Errors

When a called flow fails:

• Error propagates to parent flow
• Parent flow can catch and handle
• Execution details available in Insights

Error Handling Patterns

Fail Fast: Let errors propagate immediately:

[Call Flow] → [Continue Processing]
         ↓ (error)
    Flow Fails

Catch and Handle: Use Condition to check for errors:

[Call Flow] → [Check Success] → [Continue if OK]
                     ↓
              [Handle Error]

Retry Logic: Call again on failure (use with caution):

[Call Flow] → [Check] → [Retry Call Flow] → ...

Best Practices

Design for Reusability

Single Responsibility: Each callable flow should do one thing well:

• "Normalize Address" - just normalizes addresses
• "Calculate Shipping" - just calculates shipping
• "Validate Customer" - just validates customer data

Clear Interfaces:

• Name parameters descriptively
• Document expected input/output
• Use consistent naming conventions

Minimal Dependencies:

• Avoid assumptions about calling context
• Accept all needed data as parameters
• Don't rely on global state

Parameter Design

Be Explicit:

# Good
- customerId: string (required)
- includeHistory: boolean (optional, default: false)

# Avoid
- data: object (unclear structure)

Use Appropriate Types:

# Good
- amount: number
- orderDate: date

# Avoid
- amount: string (will need conversion)
- orderDate: string (format ambiguous)

Documentation

In the Flow:

• Use meaningful trigger name
• Add descriptions to parameters
• Name internal nodes clearly

External:

• Document the flow's purpose
• Explain expected input/output
• Provide usage examples

Testing

Test Independently:

1. Open the callable flow
2. Use Preview with test parameters
3. Verify output is correct

Test Integration:

1. Create test parent flow
2. Call the reusable flow
3. Verify end-to-end behavior

Troubleshooting

"Flow not found"

• Verify the target flow is deployed
• Check flow ID is correct
• Ensure you have permission to call it

"Parameter missing"

• Check required parameters are mapped
• Verify parameter names match exactly
• Check for null values in source data

"Type mismatch"

• Verify input types match expected
• Add Convert nodes if needed
• Check for null/empty values

"Circular dependency"

• Flow A cannot call Flow B if Flow B calls Flow A
• Review your flow architecture
• Break cycles by redesigning

"Timeout"

• Called flow takes too long
• Optimize the called flow
• Consider async patterns for long operations

Examples

Address Normalization Flow

From Flow Trigger Parameters:

- street: text (required)
- city: text (required)
- state: text (required)
- zip: text (required)

Flow Logic:

1. Transform: Standardize abbreviations
2. Transform: Proper case formatting
3. Lookup: Validate against postal database
4. Response: Return normalized address

Caller Usage:

Input: {street: "123 main st", city: "new york", ...}
Output: {street: "123 Main Street", city: "New York", ...}

Pricing Calculator Flow

From Flow Trigger Parameters:

- productId: text (required)
- quantity: number (required)
- customerId: text (optional)
- promoCode: text (optional)

Flow Logic:

1. Lookup: Get base price from products
2. Lookup: Get customer discount (if customerId)
3. Lookup: Get promo discount (if promoCode)
4. Transform: Calculate final price
5. Response: Return pricing breakdown

Data Enrichment Flow

From Flow Trigger Parameters:

- records: array (required)
- enrichmentType: text (required)

Flow Logic:

1. For each record in array
2. Lookup: Fetch enrichment data
3. Merge: Combine original + enrichment
4. Response: Return enriched records
