API Connections

API connections enable integration with external web services and REST APIs. They allow your workflows to read data from external systems, push updates, and orchestrate processes across multiple platforms.

Supported API Types

Type	Description
REST API	Standard REST endpoints (GET, POST, PUT, DELETE)
OData	OData-compliant services
GraphQL	GraphQL endpoints (via REST wrapper)
Webhooks	Outbound webhook calls

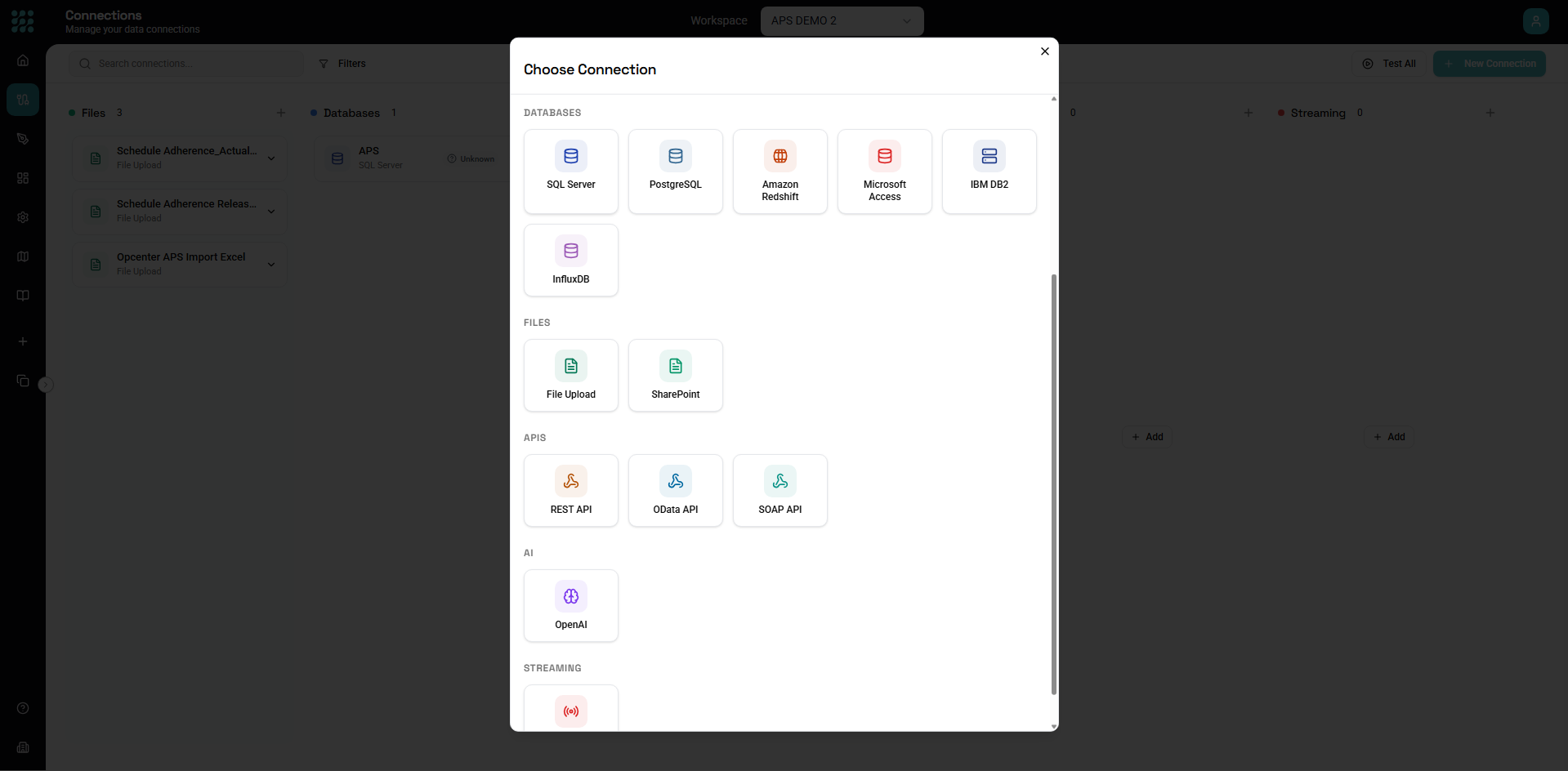

Creating an API Connection

1. Navigate to Connections in the sidebar
2. Click New Connection
3. Select REST API (or specific API type)
4. Configure base URL and authentication
5. Test and save

Configuration

Base Settings

Setting	Description	Example
Name	Display name	"CRM API"
Base URL	API root URL	https://api.example.com/v2
Timeout	Request timeout (seconds)	30
Retry	Number of retries	3

Authentication

No Authentication

For public APIs:

Authentication: None

API Key

Key passed in header or query:

Header-based:

Authentication: API Key
Header Name: X-API-Key
API Key: your-api-key-here

Query-based:

Authentication: API Key
Location: Query Parameter
Parameter Name: api_key
API Key: your-api-key-here

Basic Authentication

Username and password:

Authentication: Basic
Username: your-username
Password: your-password

Sent as: Authorization: Basic base64(username:password)

Bearer Token

Token-based auth:

Authentication: Bearer Token
Token: your-access-token

Sent as: Authorization: Bearer your-token

OAuth 2.0

OAuth flow for secure API access:

Client Credentials:

Authentication: OAuth 2.0
Grant Type: Client Credentials
Client ID: your-client-id
Client Secret: your-client-secret
Token URL: https://auth.example.com/oauth/token
Scope: read write

Authorization Code:

Authentication: OAuth 2.0
Grant Type: Authorization Code
Client ID: your-client-id
Client Secret: your-client-secret
Authorization URL: https://auth.example.com/authorize
Token URL: https://auth.example.com/token
Redirect URI: (provided by system)

Custom Headers

Additional headers for each request:

Custom Headers:
  X-Organization-ID: org123
  X-Request-Source: factorythread

Advanced Settings

Rate Limiting

Respect API rate limits:

Rate Limit: 100 requests per minute
Throttle: Wait when limit reached

SSL/TLS

For custom certificates:

Verify SSL: Yes
Client Certificate: (upload if required)

Proxy

Route through proxy:

Use Proxy: Yes
Proxy URL: http://proxy.company.com:8080
Proxy Auth: (if required)

Entity Discovery

API endpoints become entities:

Manual Endpoint Configuration

Define endpoints as entities:

Entity Name	Method	Path
Customers	GET	/customers
Orders	GET	/orders
CreateOrder	POST	/orders
UpdateCustomer	PUT	/customers/{id}

Auto-Discovery

Some APIs support discovery:

• OpenAPI/Swagger specification
• OData metadata
• WSDL for SOAP

From OpenAPI:

1. Provide OpenAPI spec URL
2. Click Discover
3. Endpoints imported as entities

Entity Schema

Define response schema:

Field	Type	Path
id	String	$.id
name	String	$.name
email	String	$.email
created	DateTime	$.createdAt

Using API Entities

GET Requests (Reading Data)

Entity configuration:

Connection: CRM API
Entity: Customers (GET /customers)

Query parameters:

status: active
limit: 100
page: {pageNumber}

Result: Array of customer objects

POST Requests (Creating Data)

Use in output action:

Connection: CRM API
Entity: CreateOrder (POST /orders)
Body: JSON from flow data

PUT/PATCH Requests (Updating)

Entity configuration:

Connection: CRM API
Entity: UpdateCustomer (PUT /customers/{id})
Path Parameters: id = {customerId}
Body: updated fields

DELETE Requests

Entity configuration:

Connection: CRM API
Entity: DeleteOrder (DELETE /orders/{id})
Path Parameters: id = {orderId}

Request Configuration

URL Parameters

Path parameters (in URL):

Path: /customers/{customerId}/orders/{orderId}
Parameters:
  customerId: {CustomerId}
  orderId: {OrderId}

Query parameters (after ?):

Path: /customers
Query:
  status: active
  region: {Region}
  limit: 100

Request Headers

Per-request headers:

Headers:
  Content-Type: application/json
  Accept: application/json
  X-Request-ID: {requestId}

Request Body

JSON body:

{
  "name": "{customerName}",
  "email": "{email}",
  "status": "active"
}

From row data: All row fields as JSON object.

Form data:

Content-Type: application/x-www-form-urlencoded
Body:
  name: {name}
  email: {email}

Response Handling

JSON Response

Parse JSON response:

{
  "data": {
    "customers": [...]
  },
  "meta": {
    "total": 156
  }
}

Data path: $.data.customers

Array Response

Direct array in response:

[
  { "id": 1, ... },
  { "id": 2, ... }
]

Data path: $ (root - entire array)

Pagination

Offset pagination:

Initial: GET /items?offset=0&limit=100
Next: GET /items?offset=100&limit=100
Continue until: fewer results than limit

Cursor pagination:

Initial: GET /items?limit=100
Next: GET /items?limit=100&cursor={nextCursor}
Continue until: no nextCursor in response

Page pagination:

Initial: GET /items?page=1&per_page=100
Next: GET /items?page=2&per_page=100
Continue until: page >= totalPages

Error Responses

Handle API errors:

Check response status:

• 2xx: Success
• 4xx: Client error
• 5xx: Server error

Error handling in flow:

[API Call] → [Condition: status = 200?]
                ├── True → [Continue]
                └── False → [Error Handler]

Common Patterns

List All Records

Paginated fetch:

[API: Get First Page]
  → [Loop: while hasMore]
     → [API: Get Next Page]
     → [Append to results]
  → [Combined results]

Create Multiple Records

Batch create:

[Records] → [For Each Row]
              → [API: Create Record]
              → [Collect responses]
           → [Results summary]

Sync Changes

Delta sync:

[API: Get Changes since lastSync]
  → [Process changes]
  → [Update lastSync timestamp]

Lookup Reference Data

Cache external data:

[API: Get Reference Data]
  → [Store in lookup table]
  → [Use in main flow via Lookup]

Authentication Flows

Token Refresh

OAuth tokens expire:

• System tracks token expiry
• Automatically refreshes before expiry
• Retries failed calls after refresh

Re-authentication

When tokens are invalid:

1. System detects 401 response
2. Attempts token refresh
3. Retries original request
4. Fails if refresh fails

Error Handling

Retry Logic

Built-in retries:

Retry Count: 3
Retry Delay: 1s, 2s, 4s (exponential)
Retry On: 429, 500, 502, 503, 504

Timeout Handling

When requests timeout:

• Request cancelled
• Error reported
• Retry if configured

Rate Limit Handling

When rate limited (429):

• Wait for specified duration
• Or use Retry-After header
• Resume requests

Performance Tips

Batch Requests

When API supports batching:

POST /customers/batch
Body: [customer1, customer2, ...]

Instead of:

POST /customers (customer1)
POST /customers (customer2)
...

Parallel Requests

For independent requests:

[Request A] ─┐
             ├─ [Combine Results]
[Request B] ─┘

Caching

Cache stable data:

• Reference data
• Configuration
• Infrequently changed data

Troubleshooting

Connection Failed

Possible causes:

1. Network connectivity
2. Firewall blocking
3. Wrong URL
4. SSL/certificate issues

Solutions:

• Verify URL is correct
• Check network access
• Test in browser/Postman
• Check SSL settings

Authentication Failed

Possible causes:

1. Invalid credentials
2. Expired token
3. Wrong auth type
4. Missing required headers

Solutions:

• Verify credentials
• Refresh/regenerate tokens
• Check API documentation
• Review required headers

Wrong Data

Possible causes:

1. Wrong endpoint
2. Response path incorrect
3. Schema mismatch

Solutions:

• Verify endpoint path
• Check response structure
• Update data path

Rate Limited

Symptoms: 429 Too Many Requests

Solutions:

• Implement rate limiting
• Add delays between requests
• Use batch endpoints
• Coordinate with API provider

Examples

Salesforce Integration

Connection:

Name: Salesforce API
Base URL: https://yourinstance.salesforce.com/services/data/v54.0
Authentication: OAuth 2.0 (Client Credentials)

Entity: Accounts

Method: GET
Path: /sobjects/Account

Stripe Integration

Connection:

Name: Stripe API
Base URL: https://api.stripe.com/v1
Authentication: Bearer Token
Token: sk_live_xxx

Entity: Customers

Method: GET
Path: /customers
Query: limit=100

Custom REST API

Connection:

Name: Internal CRM
Base URL: https://crm.company.com/api/v2
Authentication: API Key
Header: X-API-Key

Entities:

• GET /customers
• POST /customers
• PUT /customers/{id}
• GET /orders?customer_id={id}
